IFM PQ7809

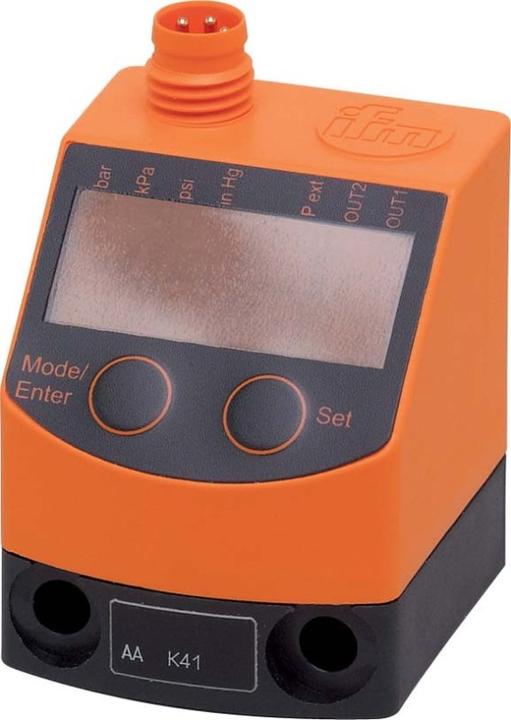

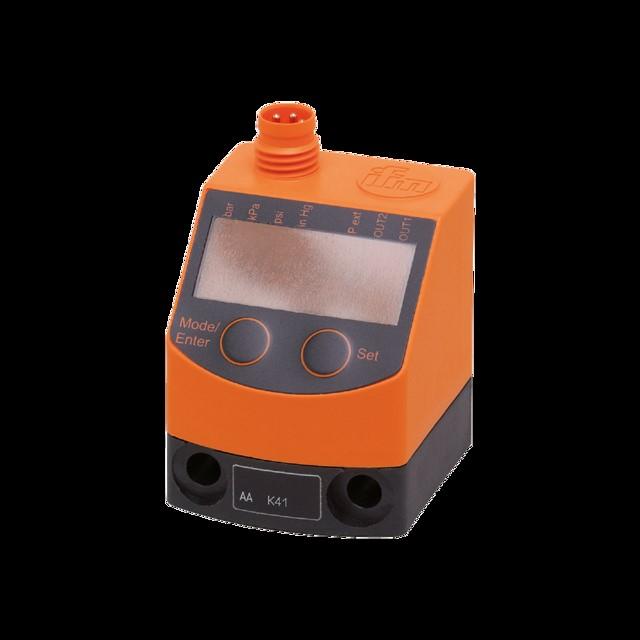

Ifm Electronic pressure sensor PQ7809

Manufacturer: Ifm Electronic
Designation: Pressure sensor electronic -1...1 bar
Type: PQ7809
Suitable as monitor: No
Suitable as 2-point controller: No
Suitable as limiter: No
Switch-on pressure: -0.98 to 1 bar
Switch-off pressure: -0.99 to 0.99 bar
Max. test pressure: 20 bar
Burst pressure: 30 bar
Medium temperature: 0 to 60 °C
Rated operating voltage at DC: 18 to 32 V
Rated operational current at AC-1, 400 V: 0.1 A
Number of auxiliary contacts as change-over contacts: 2
Version of electrical connection: Other
With manual override: No
With manual on/off switch: No
Electronic version: Yes
Explosion-proof: No
Protection class (IP): IP65

More details:
Measuring range: -1 to 1 bar
Process connection: G 1/8 I, 4-wire, DC PNP
Operating voltage: 18 to 32 V DC
Current consumption: 50 mA
2 x NO / NC programmable or 1 x NO / NC programmable + 1 x NC (diagnostic function)
M8 plug connection, function programmable
Material housing: PBT (Pocan), FPM (Viton), polyester
Materials in contact with the medium: Brass, FPM (Viton), silicon (coated), PBT (Pocan)
EAN: 4021179257756.
