IFM PP7554

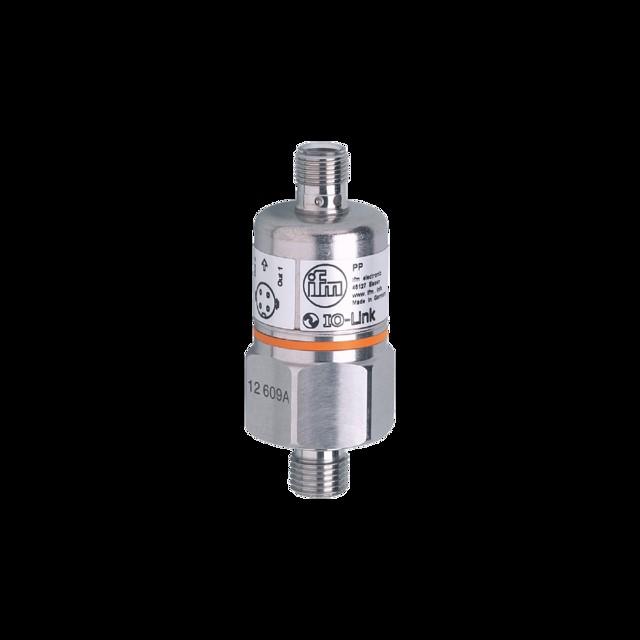

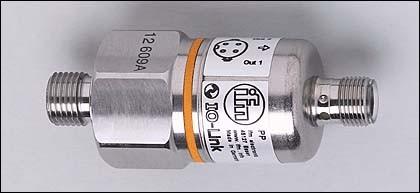

Ifm Electronic pressure sensor electronic PP7554
Manufacturer: Ifm Electronic
Designation: Pressure sensor electronic -1-10 bar
Type: PP7554
Suitable as monitor: No
Suitable as 2-point controller: Yes
Suitable as limiter: No
Switch-on pressure: -0.9 to 10 bar
Switch-off pressure: -0.95 to 9.95 bar
Max. test pressure: 75 bar
Burst pressure: 150 bar
Medium temperature: -25 to 90 °C
Rated operating voltage Ue at DC: 9.6 to 36 V
Rated operational current Ie at AC-1, 400 V: 0.25 A
Number of auxiliary contacts as make contacts: 2
Number of auxiliary contacts as break contacts: 2
Version of electrical connection: Other
With manual override: No
With manual on/off switch: No
Electronic version: Yes
Explosion-proof: No
Protection class (IP): IP68

Ifm Electronic pressure sensor electronic PP7554: more details
Pressure sensors, electronic pressure sensor, measuring range: -1 to 10 bar / -14.5 to 145 psi / -0.1 to 1.0 MPa, process connection: G 1/4A / M5 I, 4-wire, DC PNP, operating voltage: 9.6 to 36 V DC, current consumption: 45 mA, 2 x NO / NC programmable or 1 x NO / NC programmable + 1 x NC (diagnostic function), plug connection: M12 plug connection, switching point adjustment by teach function, material housing: V2A (1.4301) FPM (Viton) EPDM/X (Santoprene) PA, materials in contact with the medium: V2A (1.4305) ceramic FPM (Viton).
