Product details

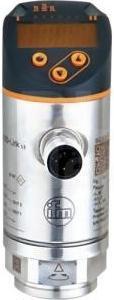

The IFM PN7097 is an electronic pressure switch designed for precise pressure measurements in various applications. With a measurement range of 0 to 1000 mbar (0 to 14.5 psi), this sensor offers high flexibility and accuracy. The pressure switch is equipped with a ceramic capacitive pressure measuring cell that ensures reliable performance. The process connection is G 1/4I, allowing for easy integration into existing systems. The PN7097 supports an operating voltage of 18 to 30 V DC and has a current consumption of 35 mA. The programmability of the switching functions allows for customization to specific requirements, while the M12 connector ensures easy installation and maintenance. The housing is made from high-quality materials that guarantee a long lifespan and resistance to various media.
- Measurement range of 0 to 1000 mbar (0 to 14.5 psi)
- Ceramic capacitive pressure measuring cell for high accuracy
- Two programmable normally open/normally closed functions
- M12 connector for easy installation
- Robust housing made of 1.4404 stainless steel and PBT+PC-GF 30.
