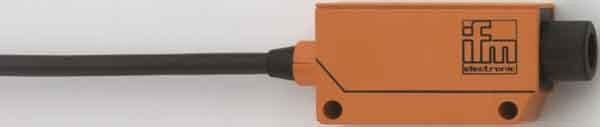

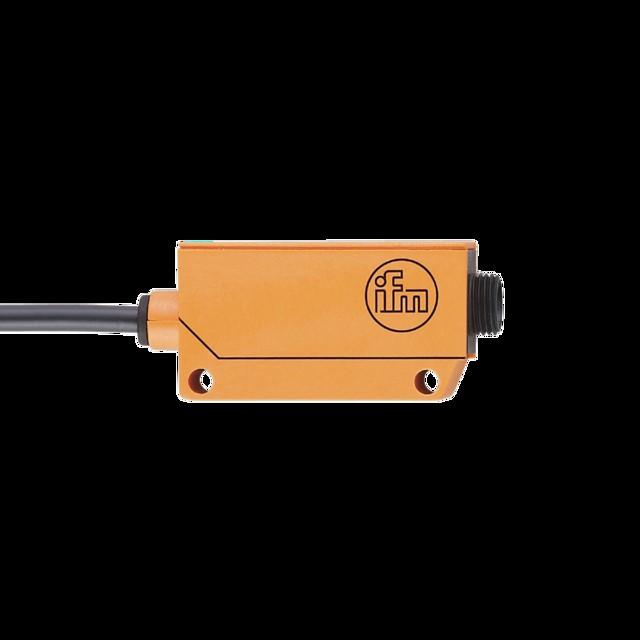

IFM OU5001

Ifm Electronic Sensor OU5001 Manufacturer :Ifm Electronic Designation :Sensor fibre optic amplifier Type :OU5001 Number of semiconductor outputs with signalling function :1 Analogue output 0 V ... 10 V :no Analogue output 0 mA ... 20 mA :no Analogue output 4 mA ... 20 mA :no Analogue output -10 V ... +10 V :no Electrical connection type :Cable Switching output type :PNP Switching function type :NO With blanking function :no Rated control supply voltage Us at DC :10..55 V Voltage type :DC Width of amplifier :16 mm Height of amplifier :28 mm Length of amplifier :51 mm Enclosure type :Cuboid No-load current :35 mA Light type :Infrared light Max. output current :35 mA Rated output current :35 mA Output current :35 mA Rated scanning range :40 mm Switching frequency :100 Hz Protection class (IP) :IP65 Ambient temperature :-25..80 °C Material of housing :Plastic Material of cable sheath :Polyvinyl chloride (PVC) With time function :no Ifm Electronic Sensor OU5001: more details Optical sensors, fibre optic amplifier, cuboid Plastic, range 0.12 m, scanning range 40 mm, 3-wire, DC PNP, operating voltage: 10...36 V DC, current consumption: 35 mA, light circuit, connection cable, 2 m, PVC cable, 3 x 0.34 mm², material housing: modified PPO , EAN: 4021179180092.
