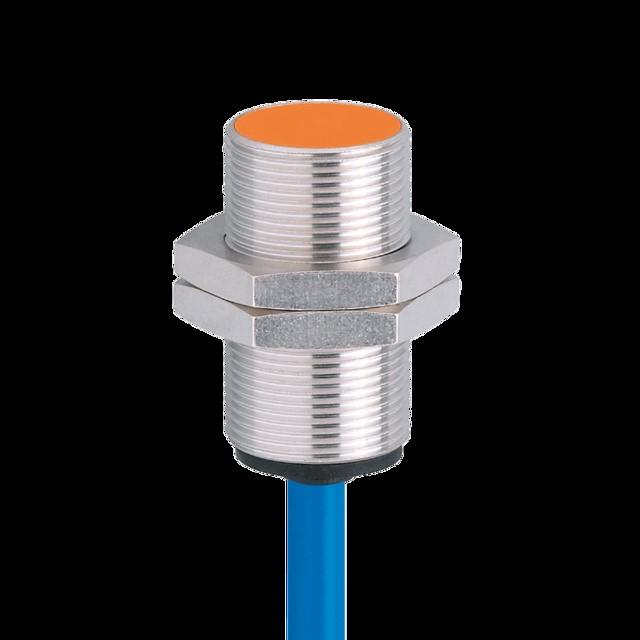

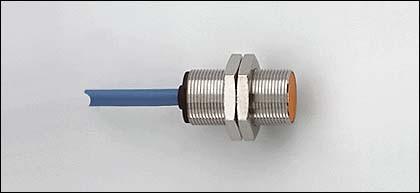

IFM NG5002

Ifm Electronic Sensor,ind.,M18x1,cable NG5002 Manufacturer :Ifm Electronic Designation :Sensor,ind.,M18x1,cable Namur,nc,sn=5mm,b Type :NG5002 Width of sensor :24 mm Height of sensor :33 mm Switching distance :5 mm Housing design :Cylinder, thread Rated control supply voltage Us at DC :7.5..30 V Material of housing :Metal Ifm Electronic Sensor,ind,M18x1,cable NG5002: more details Inductive sensors, Inductive sensor, M18 x 1, metal thread, switching distance: 5 mm, flush mountable, 2-wire, connection to certified intrinsically safe circuits,with the maximum values: U = 15 V / I = 50 mA / P = 120 mW, rated voltage: 8.2 V DC, current consumption: 1 mA, NC contact, n.c., Connection cable, 2 m, PVC cable, 2 x 0.5 mm², ATEX approval , group II, category 1D , group II, category 2G, Material housing: brass specially coated active surface: PBT , EAN: 4021179168342.
