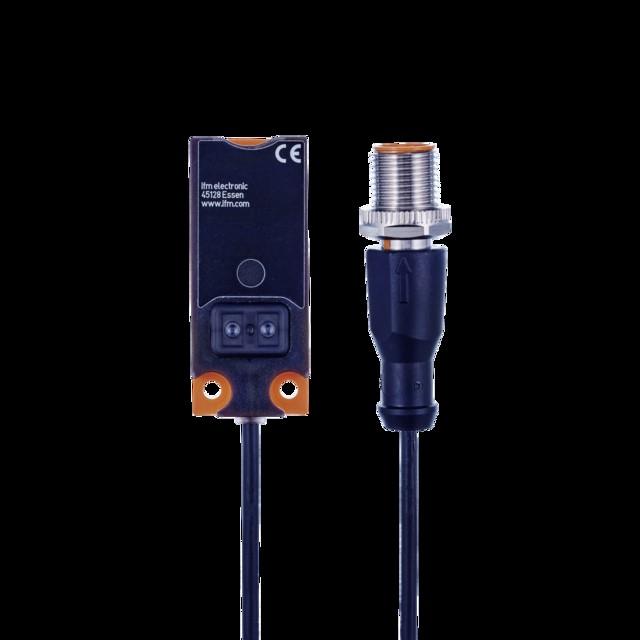

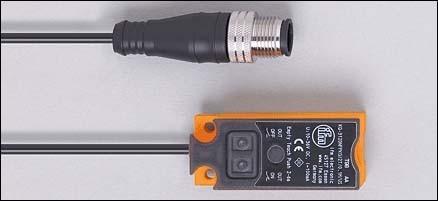

IFM KQ6005

Ifm Electronic Sensor, KQ6005
Manufacturer: Ifm Electronic
Designation: Capacitive Sensor
Type: KQ6005
Width of the sensor: 20 mm
Height of the sensor: 14 mm
Length of the sensor: 48 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 12 mm
Suitable for safety functions: no
Type of switching function: Normally Closed
Type of switching output: PNP
Type of electrical connection: Cable with connector
Number of semiconductor outputs with signaling function: 1
Type of actuation: metallic target
Type of interface: other
Type of interface for safety-related communication: none
Housing design: rectangular
Coating of housing: other
Cascadable: no
Max. output current at safe output: 100 mA
Supply voltage: 10..30 V
Rated control supply voltage Us at DC: 10..30 V
Type of voltage: DC
Switching frequency: 10 Hz
With monitoring function for downstream devices: no
Material of housing: plastic
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none

Ifm Electronic Sensor, KQ6005: additional details
Capacitive sensors, capacitive sensor, rectangular, plastic, switching distance: 12 mm, non-flush mountable, 3-wire, DC PNP, operating voltage: 10..30 V DC, current consumption: 17 mA, Normally Closed / Normally Open programmable, connection cable with connector, 0.1 m, PVC cable, teach function, electronic lock, housing material: PBT (glass fiber reinforced), buttons: TPE-U, cover: PC (glass fiber reinforced), EAN: 4021179242646.
