Product details

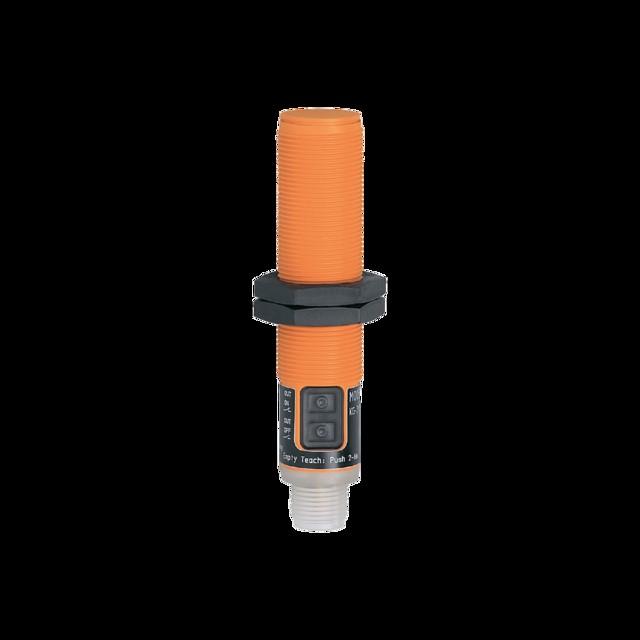

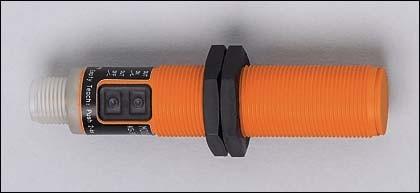

The IFM KG5065 is a capacitive sensor designed for a variety of applications in automation technology. With a diameter of 18 mm and a length of 87 mm, this sensor offers a compact design that can be easily integrated into different systems. The sensor operates with a supply voltage of 10 to 36 V DC and can be configured for both PNP and NPN switching outputs. The programmable switching function allows for flexible adaptation to specific requirements. The KG5065 is not flush mountable and provides a sensing distance of 12 mm, making it ideal for applications where the distance between the sensor and the object is critical. The sensor is equipped with an M12 connector, ensuring easy installation and maintenance. The use of plastic in the housing provides a robust and durable solution.
- Programmable switching function for flexible applications
- M12 connector for easy installation
- Non-flush mounting for specific installation needs
- Operating voltage range of 10 to 36 V DC
- Capable of PNP/NPN output configurations.
Diameter | 18 mm |
Item number | 32080471 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | KG5065 |
Release date | 17.10.2022 |
Material group | Plastic |
Material | PBT, PC, Plastic thread, TPE-U |
Nominal voltage | 24 V |
Nominal current | 0.02 A |
Country of origin | Germany |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Length | 87 mm |
Diameter | 18 mm |
