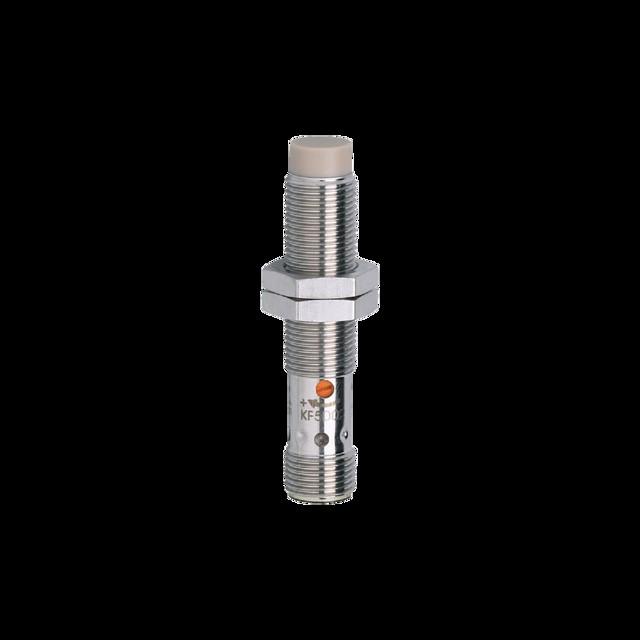

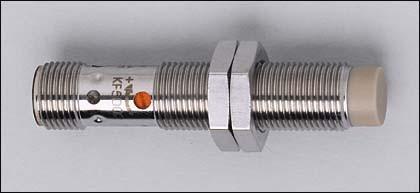

IFM KF5002

Ifm Electronic Sensor capacitive KF5002 Manufacturer :Ifm Electronic Designation :Sensor capacitive M12x1DC PNP S Type :KF5002 Length of sensor :61.2 mm Diameter of sensor :12 mm Mechanical installation condition for sensor :not flush Switching distance :8 mm Suitable for safety functions :no Version of switching function :normally open Version of switching output :PNP Version of electrical connection :plug-in connector M12 Number of semiconductor outputs with signalling function :1 Type of actuation :metallic target Version of interface :without Version of interface for safety-related communication :without Housing type :cylinder, thread Coating of housing :other Cascadable :no Max. Max. output current at safe output :100 mA Supply voltage :10..36 V Rated control supply voltage Us at DC :10...36 V Voltage type :DC Switching frequency :50 Hz With monitoring function of downstream devices :no Material of housing :Metal Flameproof :no Explosion protection category for gas :none Explosion protection category for dust :Ifm Electronic Sensor capacitive KF5002: more details Capacitive sensors, Capacitive sensor, M12 x 1, Metal thread, Switching distance: 8 mm, Non-flush mountable, 3-wire, DC PNP, Operating voltage: 10...36 V DC, current consumption: 12 mA, make contact, n.o., Plug connection, M12 plug connection, Increased noise immunity, Material housing: V4A (1.4404) PEEK (polyether ether ketone) , EAN: 4021179145695.
