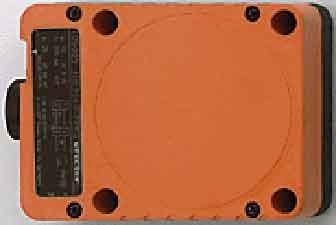

IFM KD0009

Ifm Electronic Sensor, capacitive, 105x80, Cable KD0009. Manufacturer: Ifm Electronic. Description: Sensor, capacitive, 105x80, AC/DC cable, programmable, switching distance: 60 mm. Type: KD0009. Width of the sensor: 80 mm. Height of the sensor: 105 mm. Length of the sensor: 40 mm. Mechanical installation condition for the sensor: non-flush. Suitable for safety functions: no. Type of switching function: programmable/configurable. Type of switching output: 2-wire. Type of electrical connection: terminal. Number of semiconductor outputs with signaling function: 1. Type of actuation: other. Type of interface: none. Type of interface for safety-related communication: none. Housing design: rectangular. Housing coating: other. Cascadable: no. Max. output current at safe output: 250 mA. Supply voltage: 20..250 V. Rated control supply voltage Us at AC 50 Hz: 20..250 V. Rated control supply voltage Us at AC 60 Hz: 20..250 V. Rated control supply voltage Us at DC: 20..250 V. Voltage type: AC/DC. Switching frequency: 10 Hz. With monitoring function for downstream devices: no. Material of the housing: plastic. Pressure-resistant: no. Explosion protection category for gas: none. Explosion protection category for dust: none. Additional details: Capacitive sensors, capacitive sensor, rectangular, plastic, switching distance: 60 mm, non-flush mountable, 2-wire, AC/DC, operating voltage: 20...250 V AC/DC, normally open/closed programmable, connection terminals, terminals up to 2.5 mm², increased interference immunity, housing material: modified PPO. EAN: 4021179145060.
