Product details

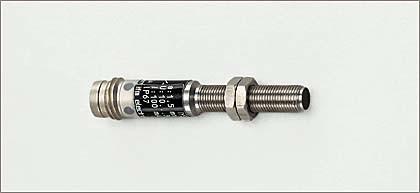

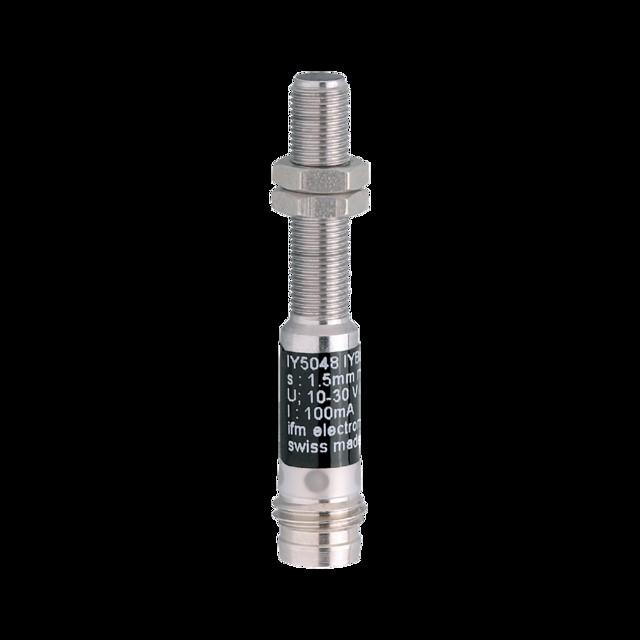

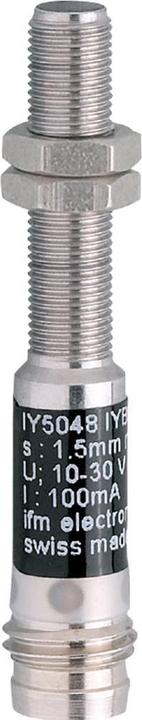

The IFM IY5048 is an inductive sensor designed for various applications in automation technology. With an M5x0.5 thread and a switching distance of 1.5 mm, this sensor provides reliable object detection without direct contact. The sensor is not flush mountable and features a 3-wire connection technology that allows for easy integration into existing systems. The operating voltage ranges from 10 to 30 volts DC, making it versatile for different uses. With a current consumption of only 10 mA, the IY5048 is energy-efficient and suitable for applications where space is limited. The stainless steel housing ensures durability and resilience, while the active area made of POM (polyoxymethylene) offers additional robustness. The sensor is equipped with an M8 connector, ensuring a simple and secure connection.
- Inductive sensor with M5x0.5 thread and 1.5 mm switching distance
- Operating voltage of 10 to 30 volts DC
- Energy-efficient current consumption of 10 mA
- Stainless steel housing for increased durability.
Diameter | 5 mm |
Item number | 32078772 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IY5048 |
Release date | 17.10.2022 |
Material group | Metal, Plastic |
Material | POM (polyoxymethylene), Stainless steel |
LED colour | Red |
Nominal voltage | 24 V |
Nominal current | 10 A |
Country of origin | China |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Items per sales unit | 1 pcs. |
Length | 41 mm |
Diameter | 5 mm |
