Product details

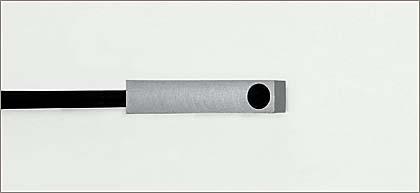

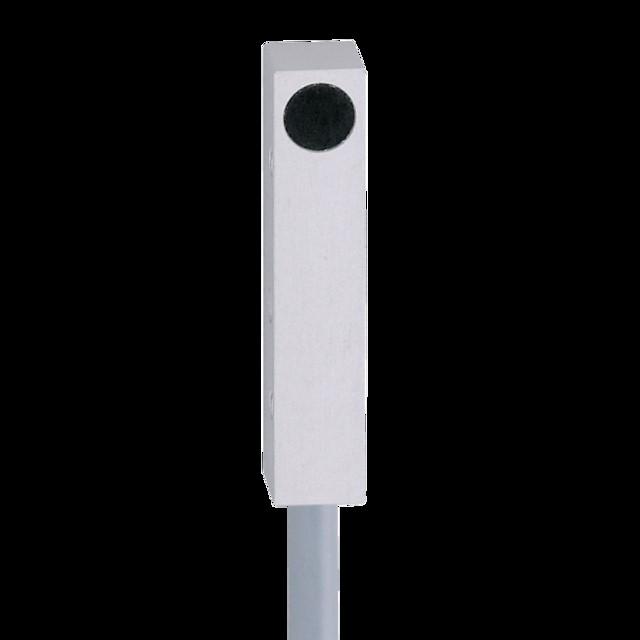

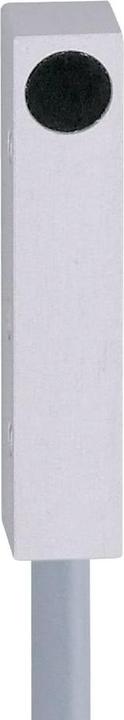

The IFM IL5022 is an inductive sensor designed for various applications in automation technology. This sensor is characterized by its robust construction made of anodized aluminum, providing reliable performance in industrial environments. With a switching distance of 0.8 mm, the sensor can be flush-mounted and allows for precise detection of objects. The IL5022 operates with a supply voltage of 10 to 30 V DC and has a current consumption of only 10 mA, making it energy-efficient. The connection cable is 2 meters long and made of PVC, offering additional flexibility during installation. The sensor is equipped with an acoustic feedback feature, enabling easy operation and monitoring.
- Flush mountable with a switching distance of 0.8 mm
- Robust housing made of anodized aluminum
- Energy-efficient with a current consumption of 10 mA
- Acoustic feedback for improved user interaction
- Long connection cable of 2 meters made of PVC.
Material group | Metal |
Width | 5 mm |
Item number | 32080007 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IL5022 |
Release date | 17.10.2022 |
Material group | Metal |
Material | Anodized aluminium |
LED colour | Red |
Nominal voltage | 30 V |
Nominal current | 0.01 A |
Switch + push-button Additional function | Acoustic feedback |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Sensor inductive DC PNP S |
Length | 2000 mm |
Width | 5 mm |
Height | 5 mm |
