IFM IGT207

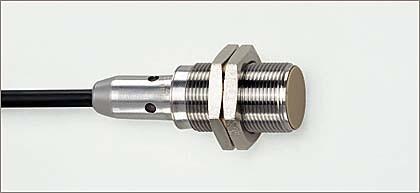

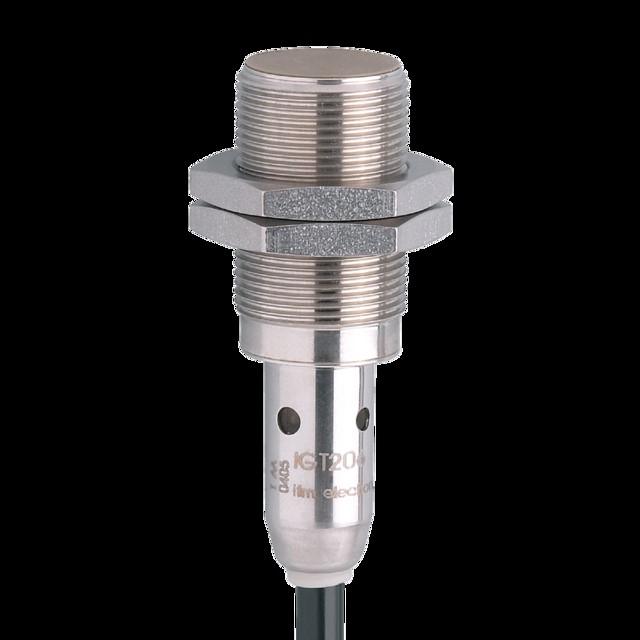

Ifm Electronic sensor inductive IGT207
Manufacturer: Ifm Electronic
Designation: Sensor inductive M18x1DC PNP
Type: IGT207
Length of sensor: 57 mm
Diameter of sensor: 18 mm
Mechanical installation condition for sensor: flush
Switching distance: 8 mm
Suitable for safety functions: no
Version of switching function: N/O contact
Version of switching output: PNP
Version of electrical connection: cable axial
Number of semiconductor outputs with signaling function: 1
Type of actuation: metallic target
Version of interface: without
Version of interface for safety-related communication: without
Housing design: cylinder, thread
Coating of housing: other
Cascadable: no
Max. output current at the safe output: 100 mA
Supply voltage: 10..36 V
Rated control supply voltage Us at DC: 10...36 V
Voltage type: DC
Switching frequency: 600 Hz
With monitoring function of downstream devices: no
Material of housing: Metal
Flameproof: no
Explosion protection category for gas: none
Explosion protection category for dust: without

Ifm Electronic sensor inductive IGT207: more details
Inductive sensors, inductive sensor, M18 x 1, metal thread, switching distance: 8 mm, flush mountable, 3-wire, DC PNP, operating voltage: 10...36 V DC, current consumption: 10 mA, make contact, n.o., connection cable, 10 m, PVC cable, 3 x 0.34 mm², increased switching distance, material housing: V4A (316L), active surface: PEEK (polyether ether ketone), EAN: 4021179102360.
