IFM IGS212
Delivered between Wed, 8.4. and Mon, 13.4.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Distrelec CH
free shipping
Product details

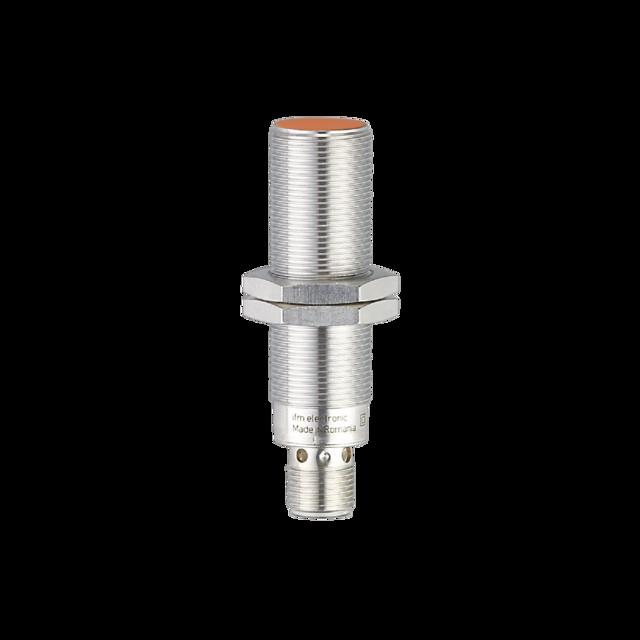

The IFM IGS212 is an inductive sensor designed for a variety of applications in automation technology. With a robust brass housing coated in white bronze, this sensor offers high resistance and durability. It features an M18x1 thread for flush mounting. The sensor operates with a supply voltage of 10 to 36 V DC and has a current consumption of only 10 mA. The IGS212 is a normally open (n.o.) switch and comes with an M12 connector for easy installation. The gold-plated contacts ensure reliable signal transmission and extend the sensor's lifespan. Additionally, the sensor provides acoustic feedback for easy monitoring of operational status.
- Flush mountable with M18x1 thread
- Supply voltage of 10 to 36 V DC
- Acoustic feedback for status indication
- Gold-plated contacts for improved signal transmission.
Colour | Orange, White |
Width | 100 mm |
Diameter | 18 mm |
Item number | 32079563 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IGS212 |
Release date | 17.10.2022 |
Colour | Orange, White |
Material group | Metal |
Material | Active area: PBT orange, Housing: Brass white-bronze coated |
LED colour | Yellow |
Number of poles | 1x |
Nominal voltage | 24 V |
Nominal current | 10 A |
Country of origin | Germany |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Length | 70 mm |
Width | 100 mm |
Height | 85 mm |
Diameter | 18 mm |
