Product details

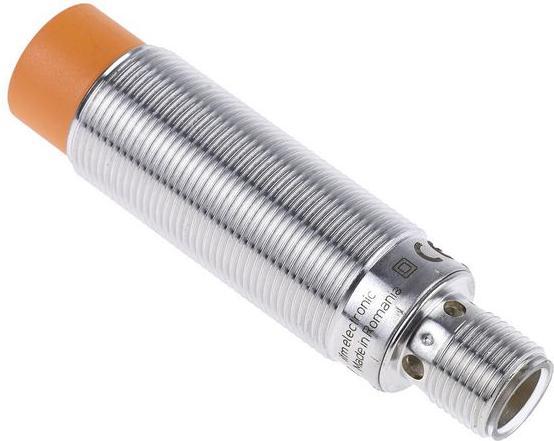

The IFM IGS209 is an inductive sensor designed for various applications in automation technology. With a robust metal housing and an M18x1 thread, this sensor offers reliable performance in industrial environments. The switching distance of 12 mm allows for precise object detection, while the option to operate it as a 3-wire or 2-wire device provides flexibility in installation. The integrated LEDs serve as an optical adjustment aid, facilitating commissioning. The sensor is designed to operate with a voltage of 10 to 30 V DC and has a current consumption of only 12 mA, making it energy-efficient. The gold-plated contacts ensure high reliability and durability, while the housing made of white bronze-coated brass offers additional protection.
- Inductive sensor with M18x1 thread for industrial applications
- Switching distance of 12 mm for precise object detection
- Operable as a 3-wire or 2-wire device
- Optical adjustment aid through integrated LEDs
- Gold-plated contacts for high reliability and durability.
Diameter | 18 mm |
Item number | 32080312 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IGS209 |
Release date | 17.10.2022 |
Material group | Metal, Plastic |
Material | Brass white bronze-coated, PBT |
LED colour | Red, Yellow |
Nominal voltage | 30 V |
Country of origin | Romania |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Items per sales unit | 1 pcs. |
Length | 70 mm |
Diameter | 18 mm |
