Product details

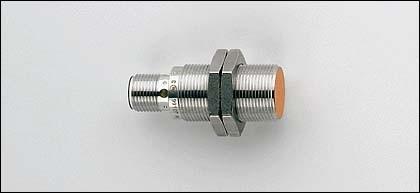

The IFM IGS206 is an inductive sensor designed for various applications in automation technology. With an M18x1 metal thread and a flush mounting solution, this sensor provides reliable object detection without direct contact. The sensor operates with a supply voltage of 10 to 30 V DC and has a current consumption of only 10 mA, making it energy-efficient. The gold-plated contacts ensure improved conductivity and durability, while the brass housing with a white bronze coating offers additional protection. The M12 connector allows for easy installation and integration into existing systems. The IGS206 is ideal for applications where precise and reliable switching operations are required.
- Inductive sensor with an increased switching distance of 8 mm
- Supply voltage of 10 to 30 V DC
- Energy-efficient current consumption of 10 mA
- Flush mountable with M18x1 metal thread
- Brass housing with gold-plated contacts.
Item number | 32081332 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IGS206 |
Release date | 17.10.2022 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 3-wire, Current consumption: 10 mA, DC PNP, Flush mountable, Gold-plated contacts, Increased switching distance, Inductive sensor, M12 plug connection, M18 x 1, Material housing: brass white bronze coated active surface: PBT (Pocan) PEI, Metal thread, n.c., Opener, Operating voltage: 10...30 V DC, Plug, Switching distance: 8 mm |
