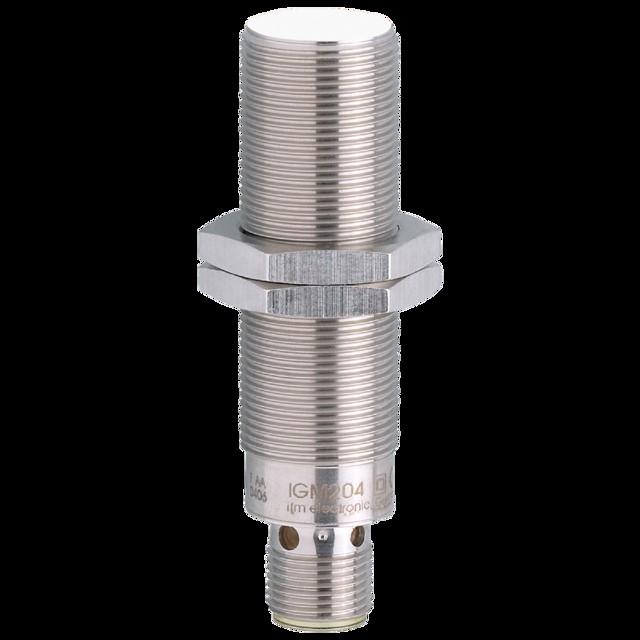

IFM IGM204
6 pieces in stock at third-party supplier
Product details
The IFM IGM204 is an inductive sensor designed for a variety of applications in automation technology. With a robust stainless steel housing and a metal thread in the M18x1 form factor, this sensor offers high resistance and durability. The sensor can be flush-mounted and allows for a switching distance of up to 8 mm, making it ideal for precise measurements and controls. The IGM204 operates with a supply voltage of 10 to 60 V DC and has a current consumption of only 10 mA. The use of gold-plated contacts ensures reliable signal transmission and a long lifespan. Additionally, the sensor is equipped with an M12 connector, facilitating easy installation and maintenance. The acoustic feedback is an added feature that enhances user-friendliness and provides clear feedback on the switching status.
- Supply voltage of 10 to 60 V DC
- Switching distance of up to 8 mm
- Flush mountable with M18x1 thread
- Robust stainless steel housing for high resistance
- Acoustic feedback for user interaction.
Width | 140 mm |
Diameter | 18 mm |
Item number | 32078119 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer No. | IGM204 |
Release date | 17.10.2022 |
Material group | Metal |
Material | Brass, LCP, Stainless steel |
Operating mode | Key |
Number of actuation levels | 1x |
LED lighting | Yellow |
Nominal voltage | 60 V |
Nominal current | 0.01 A |
Switch + push-button Additional function | Lighting |
Country of origin | Romania |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Length | 218 mm |
Width | 140 mm |
Height | 25 mm |
Diameter | 18 mm |
