Product details

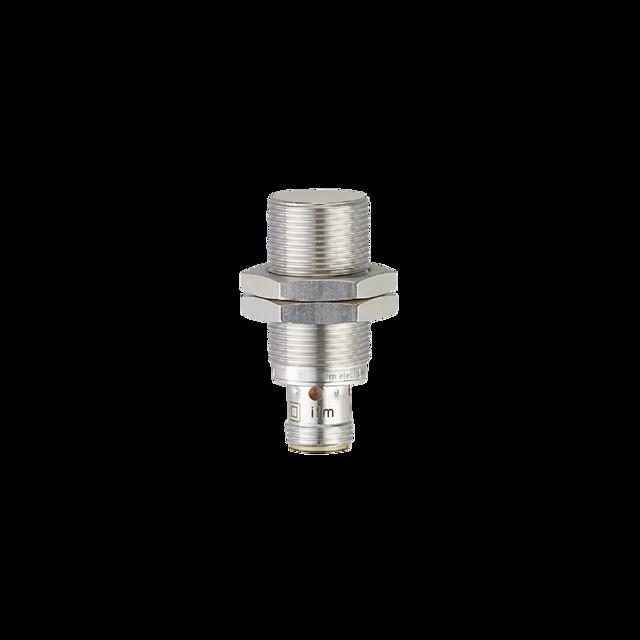

The IFM IGC204 is an inductive proximity switch designed for a wide range of applications in automation technology. With a robust metal housing and a compact design, this sensor is ideal for use in industrial environments. The switch has a sensing distance of 8 mm and is configured as a normally open contact, meaning it activates when an object approaches. The electrical connection is made via an M12 connector, allowing for easy integration into existing systems. The IGC204 operates with a supply voltage of 10 to 36 V DC and has a switching frequency of up to 400 Hz, making it a reliable choice for fast applications. The gold-plated contacts ensure high reliability and durability, while the option for flush mounting provides additional flexibility during installation.
- Inductive sensor with a sensing distance of 8 mm
- Robust metal housing for industrial applications
- M12 connector for easy electrical connection
- Switching frequency of up to 400 Hz for quick responses
- Gold-plated contacts for increased reliability and longevity.
Colour | Multicoloured |
Diameter | 18 mm |
Item number | 32078631 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IGC204 |
Release date | 17.10.2022 |
Colour | Multicoloured |
Material group | Metal, Plastic |
Material | Brass white bronze-coated, LCP |
Operating mode | Key |
LED colour | Yellow |
Number of poles | 1x |
Nominal voltage | 30 V |
Country of origin | Germany |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Length | 46 mm |
Diameter | 18 mm |
