IFM IG6084
8 pieces in stock at third-party supplier
Product details

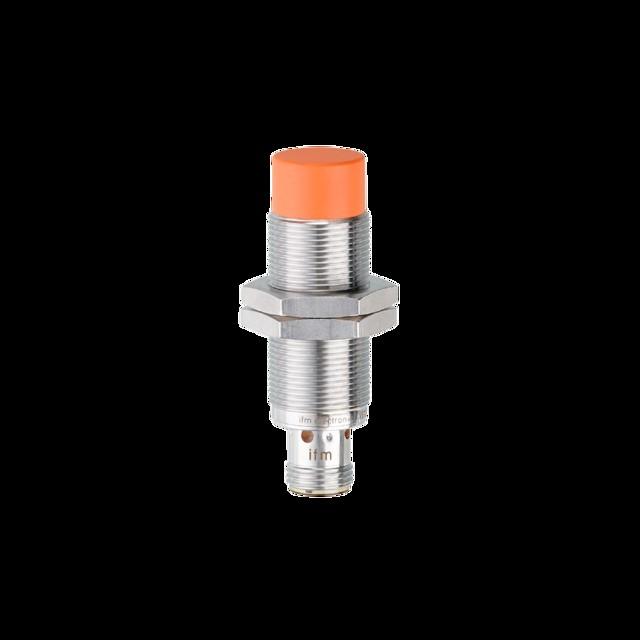

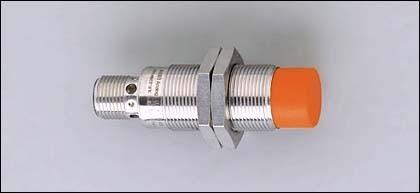

The IFM IG6084 is an inductive sensor designed for various applications in automation technology. With a cylindrical housing and an M18x1 thread, this sensor provides a robust and reliable solution for detecting objects without direct contact. The IG6084 operates with a supply voltage of 15 to 30 V DC and has a switching distance of 0.8 to 8 mm, making it versatile for different uses. The analog output of 0 to 10 V allows for precise signal transmission, while the M12 connector ensures easy integration into existing systems. The housing made of brass coated with white bronze ensures durability and resistance in industrial environments. This sensor is not flush mountable and is ideal for applications where non-contact object detection is required.
- Cylindrical housing with M18x1 thread
- Switching distance of 0.8 to 8 mm
- Analog output voltage of 0 to 10 V
- Robust housing made of brass coated with white bronze.
Width | 75 mm |
Item number | 32078143 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IG6084 |
Release date | 17.10.2022 |
Material group | Metal, Plastic |
Material | Brass white bronze-coated, PBT |
Number of poles | 1x |
Nominal voltage | 30 V |
Country of origin | Germany |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Items per sales unit | 1 pcs. |
Length | 60 mm |
Width | 75 mm |
Height | 40 mm |
