Product details

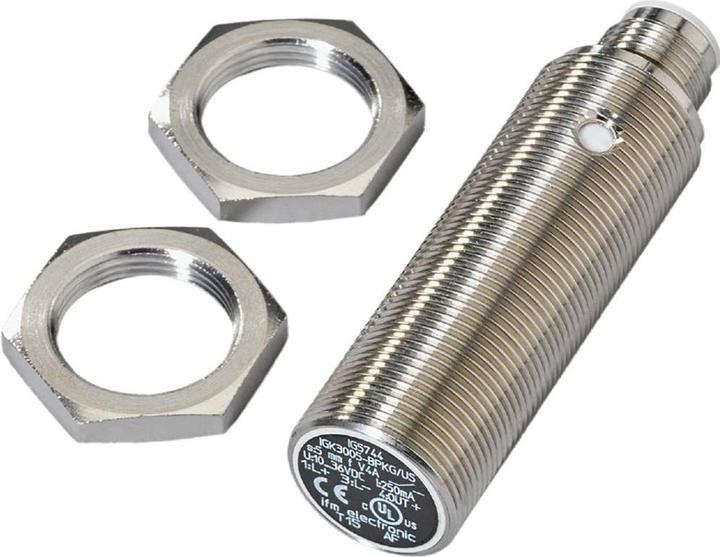

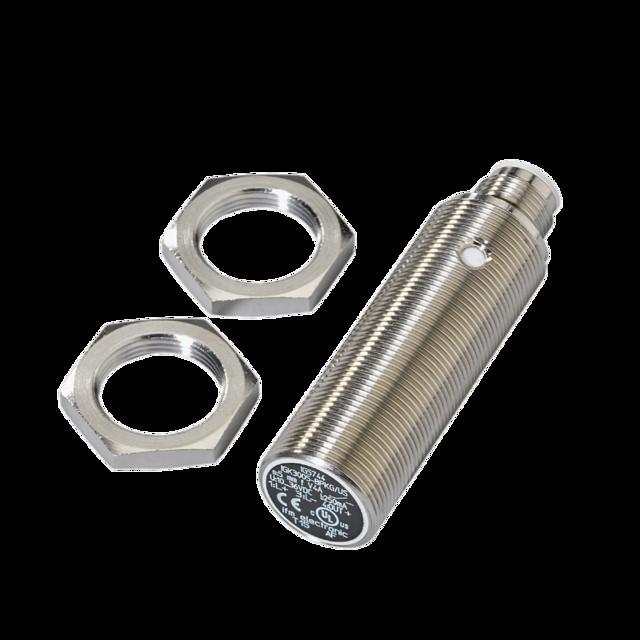

The IFM IG5744 is an inductive proximity switch designed for a wide range of applications in automation technology. With a robust metal housing and a cylindrical design, this sensor is ideal for use in industrial environments. The switch offers a sensing distance of 5 mm and can be flush-mounted, allowing for flexible installation. The IG5744 operates with a supply voltage of 10 to 36 V DC and has a maximum output current of 200 mA, making it a reliable choice for various control and automation tasks. The use of high-quality materials such as V4A stainless steel and PBT ensures durability and resistance to environmental influences. The sensor is equipped with an M12 connector, providing a simple and secure connection.
- Inductive sensor with a sensing distance of 5 mm
- Flush mountable for flexible installation options
- Robust metal housing for industrial applications
- Maximum output current of 200 mA
- M12 connector for easy handling.
Width | 18 mm |
Item number | 32080417 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IG5744 |
Release date | 17.10.2022 |
Material group | Metal |
Material | Metal, V4A (1.4571) PBT (Pocan) |
LED colour | without LED |
Number of poles | 3 x |
Nominal voltage | 36 V |
Nominal current | 0.02 A |
Switch + push-button Additional function | Acoustic feedback |
Country of origin | Germany, Romania |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 3-wire, Closers, Current consumption: 15 mA, DC PNP, Flush mountable, Housing material: V4A (1.4571) PBT (Pocan) colourless, Inductive sensor, M12 plug connection, M18 x 1, Metal thread, n.o., Operating voltage: 10..36 V DC, Plug, Switching distance: 5 mm |
Length | 64 mm |
Width | 18 mm |
Height | 18 mm |
