Product details

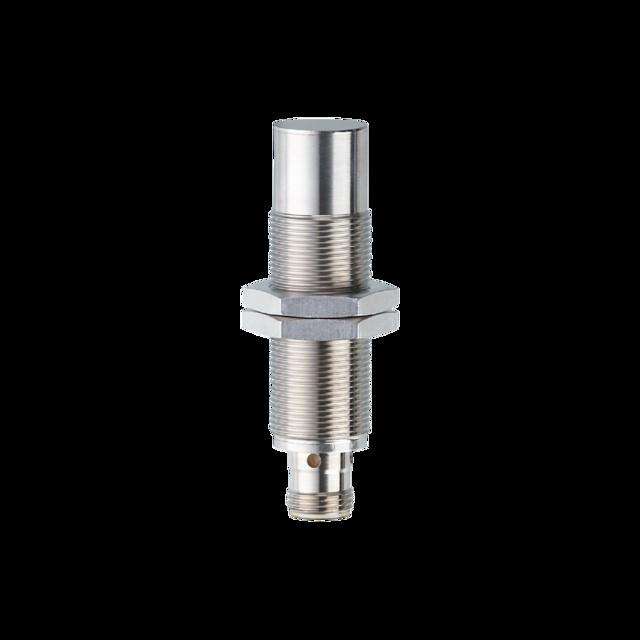

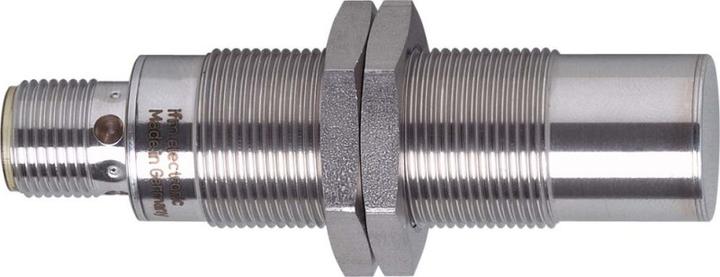

The IFM IG511A is an inductive sensor designed for various applications in automation technology. With a robust full metal housing made of V4A (1.4404), this sensor offers high resistance to environmental influences. The sensor features an M18 x 1 metal thread, allowing for easy installation. The switching distance of 12 mm ensures reliable object detection, while the gold-plated contacts guarantee high signal quality. The IG511A is designed for operation with a voltage of 10 to 36 V DC and has a current consumption of only 25 mA. Additionally, it meets ATEX certification for use in explosion-prone areas of category 3D/3G, making it a safe choice for industrial applications.
- Increased switching distance of 12 mm
- Robust full metal housing made of V4A (1.4404)
- Gold-plated contacts for improved signal quality
- ATEX certification for explosion-prone areas
- Easy installation with M18 x 1 metal thread.
Material group | Metal |
Item number | 32080946 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IG511A |
Release date | 17.10.2022 |
Material group | Metal |
Material | V4A (1.4404) |
Nominal voltage | 30 V |
Nominal current | 0.03 A |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 3-wire, All-metal housing, ATEX approval, Cannot be installed flush, Category 3D/3G, Closers, Current consumption: 25 mA, DC PNP, Gold-plated contacts, Group II, Housing material: V4A (1.4404) PEI Fastening nuts: Brass, Increased switching distance, Inductive sensor, M12 plug connection, M18 x 1, Metal thread, n.o., Operating voltage: 10...36 V DC, Plug, Switching distance: 12 mm |
Specifications may include unverified machine translations.
