Product details

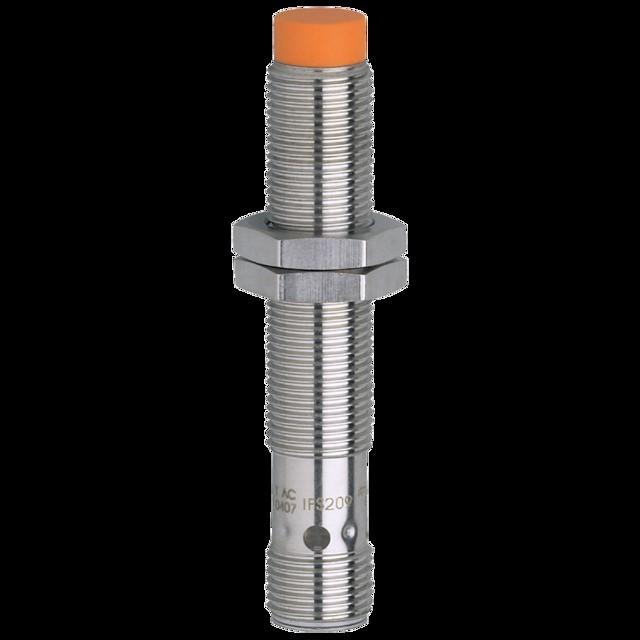

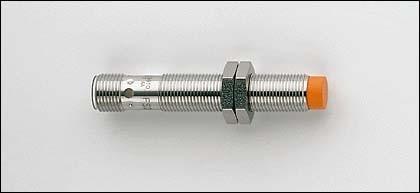

The IFM IF6031 is an inductive sensor designed for precise applications in automation technology. With a cylindrical housing and an M12x1 thread, this sensor offers a robust and reliable solution for various industrial environments. The sensor operates with a supply voltage of 15 to 30 V DC and has a current consumption of 20 mA. The switching distance ranges from 0.4 to 4 mm, making it ideal for detecting objects at different distances. The IF6031 is not flush mountable and features an analog output of 0 to 10 V, which is linear with a slope of 2.77 V/mm. The housing is made of brass coated with white bronze, while the active area is made of PBT, ensuring high resistance and durability.
- Cylindrical housing with M12x1 thread
- Supply voltage of 15 to 30 V DC
- Switching distance of 0.4 to 4 mm
- Analog output of 0 to 10 V with linear slope
- Robust housing made of brass coated with white bronze.
Diameter | 12 mm |
Item number | 32079562 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IF6031 |
Release date | 17.10.2022 |
Exact colour description | Brass white bronze-coated |
Material group | Metal, Plastic |
Material | Brass white bronze-coated, PBT |
Number of actuation levels | 3x |
Nominal voltage | 30 V |
Country of origin | Germany |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Items per sales unit | 1 pcs. |
Length | 70 mm |
Diameter | 12 mm |
Specifications may include unverified machine translations.
