IFM IF5249
6 pieces in stock at third-party supplier
Product details

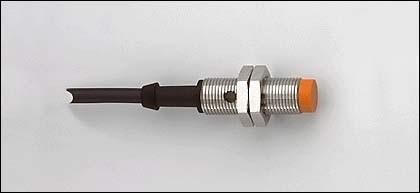

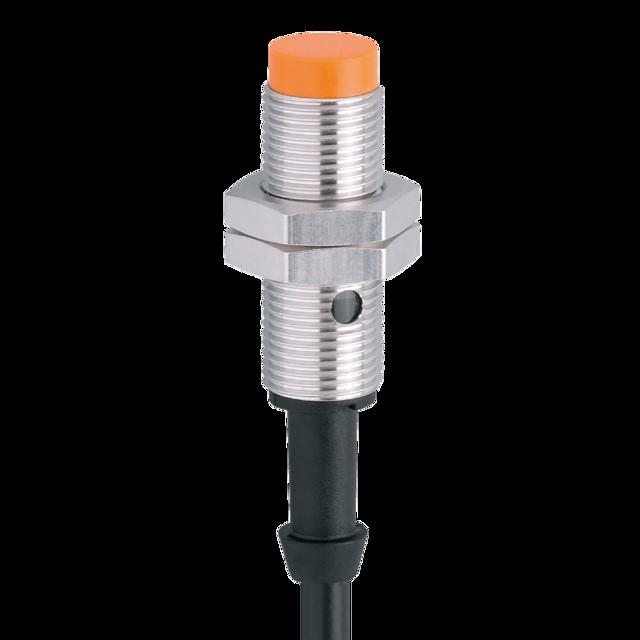

The IFM IF5249 is an inductive sensor designed for various applications in automation technology. With a robust M12x1 brass thread coated with white bronze, this sensor offers high resistance and durability. The sensor is not flush mountable and features a switching distance that ensures precise detection. It operates with a supply voltage of 10 to 36 volts DC and has a current consumption of only 15 mA. The switch is designed as a normally open (n.o.) contact, making it ideal for applications that require reliable and efficient switching performance. The active area is made of polycarbonate, providing additional robustness. The sensor is equipped with a 3-wire connection and comes with a PVC cable, allowing for easy integration into existing systems.
- Operating voltage of 10 to 36 volts DC
- Maximum switching power of 150 watts
- Robust housing made of brass with a white bronze coating
- Active area made of durable polycarbonate.
Colour | Bronze, Multicoloured |
Width | 80 mm |
Diameter | 12 mm |
Item number | 32078172 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IF5249 |
Release date | 17.10.2022 |
Colour | Bronze, Multicoloured |
Material group | Metal |
Material | Brass white bronze-coated, PC (polycarbonate) |
Operating mode | Key |
Number of actuation levels | 1x |
LED colour | Yellow |
Number of poles | 3x |
Nominal voltage | 24 V |
Nominal current | 0.15 A |
Protection type (IP code) | IP67 |
Country of origin | Romania |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Items per sales unit | 1 pcs. |
Length | 35 mm |
Width | 80 mm |
Height | 60 mm |
Diameter | 12 mm |
