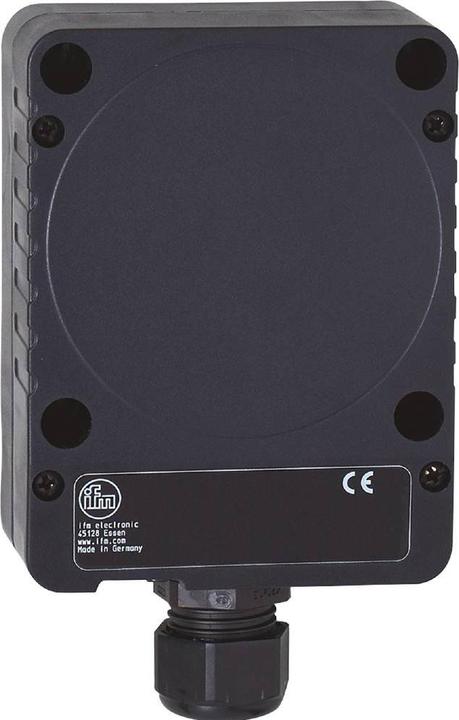

IFM ID502A

Ifm Electronic Sensor ID502A

Manufacturer: Ifm Electronic
Designation: Sensor
Type: ID502A
Width of the sensor: 80 mm
Height of the sensor: 42 mm
Length of the sensor: 105 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 60 mm
Suitable for safety functions: no
Type of switching function: Changeover
Type of switching output: PNP
Type of electrical connection: Cable
Number of semiconductor outputs with signaling function: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: Rectangular
Housing coating: other
Cascadable: no
Supply voltage: 10..30 V
Rated control supply voltage Us at DC: 10..30 V
Voltage type: DC
Switching frequency: 100 Hz
With monitoring function for downstream devices: no
Material of the housing: Plastic
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none

Inductive sensors, inductive sensor, rectangular, plastic, switching distance: 60 mm, non-flush mountable, 3-wire, DC PNP, operating voltage: 10..30 V DC, current consumption: 15 mA, normally open / normally closed programmable, connection terminals, terminals 0.34 to 2.5 mm², ATEX approval, Group II, Category 3D, housing material: modified PPE PA.
