Product details

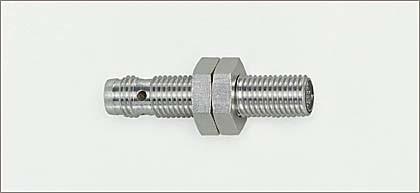

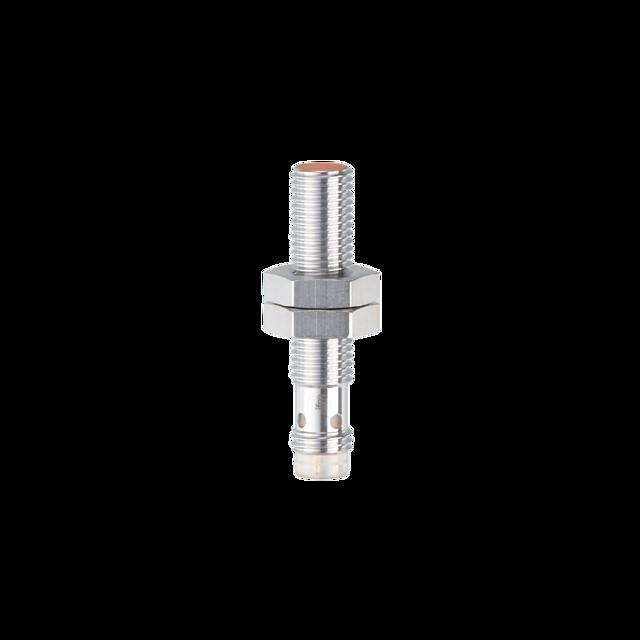

The IFM Electronic IE5338 is an inductive sensor with an M8x1 connector, designed for various applications in automation technology. This sensor is characterized by its robust construction with a specially coated brass housing that offers high resistance to environmental influences. The sensor can be used in both 3-wire and 2-wire operation, making it versatile. With a switching distance suitable for flush mounting, it enables precise measurements and switching operations. The current consumption of only 15 mA and the operating voltage of 10 to 30 V DC make it an energy-efficient solution for industrial applications. The active area of the sensor is made of LCP and is bright orange, which enhances visibility and handling.
- Operation possible as 3-wire or 2-wire
- Switching distance suitable for flush mounting
- Robust housing made of specially coated brass
- Active area made of LCP for improved performance
- Acoustic feedback as an additional feature.
Colour | Orange |
Width | 8 mm |
Diameter | 8 mm |
Item number | 32080272 |
Manufacturer | ifm Electronic |
Category | Buttons + Switches |
Manufacturer No. | IE5338 |
Release date | 17.10.2022 |
External links |
Colour | Orange |
Exact colour description | Orange |
Material group | Metal |
Material | Brass, LCP |
Operating mode | Key |
LED lighting | Yellow |
Nominal voltage | 30 V |
Nominal current | 0.10 A |
Protection type (IP code) | IP65, IP67 |
Country of origin | Germany |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Items per sales unit | 1 pcs. |
Scope of delivery | ind., M8x1, Male, Sensor |
Length | 40 mm |
Width | 8 mm |
Height | 40 mm |
Diameter | 8 mm |
Specifications may include unverified machine translations.
