Product details

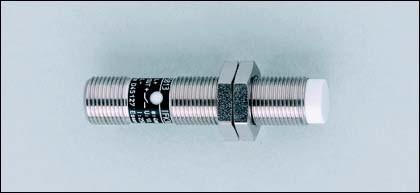

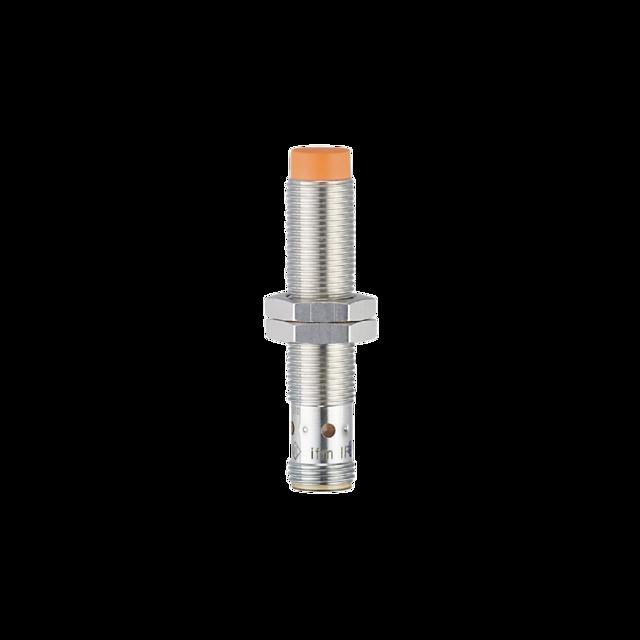

The IFM IF5712 inductive sensor is a high-precision device designed for various applications in automation technology. With a robust metal housing and cylindrical shape, this sensor is ideal for use in industrial environments. The sensor operates with a supply voltage of 10 to 36 V DC and offers a switching distance of 4 mm, making it a reliable choice for object detection without direct contact. The PNP version of the switching output allows for easy integration into existing systems. Thanks to the M12 connector, installation is straightforward and secure. The sensor is not flush mountable, making it suitable for specific mounting requirements. With a maximum output current of 250 mA, the IF5712 delivers high performance and efficiency.
- Robust metal housing for industrial applications
- Switching distance of 4 mm for precise object detection
- PNP version for easy integration into systems
- M12 connector for straightforward installation
- Maximum output current of 250 mA for high performance.
Colour | Bronze |
Width | 17 mm |
Item number | 32080300 |
Manufacturer | ifm Electronic |
Category | Buttons + Switches |
Manufacturer No. | IF5712 |
Release date | 17.10.2022 |
External links |
Colour | Bronze |
Material group | Metal |
Material | Brass white bronze-coated, PC (polycarbonate) |
LED lighting | Yellow |
Nominal voltage | 36 V |
Nominal current | 0.25 A |
Protection type (IP code) | IP67 |
Country of origin | Germany |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Items per sales unit | 1 pcs. |
Scope of delivery | Ind, M12x1 DC, nb Type :IF5712, PNP, Sensor, sn=4mm |
Length | 60 mm |
Width | 17 mm |
Height | 59 mm |
Specifications may include unverified machine translations.
