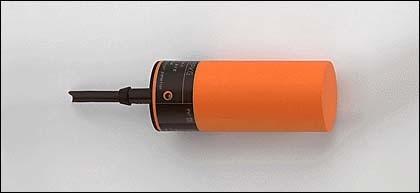

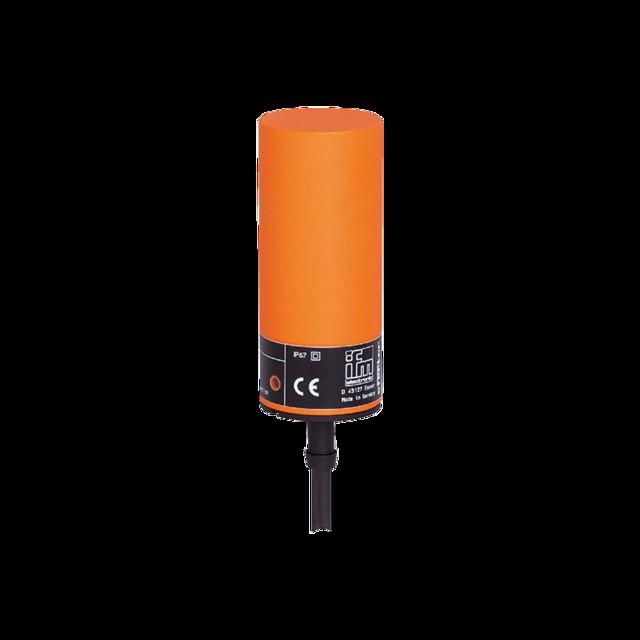

ifm Electronic Sensor,ind.,34rd.,cable IB0004

Ifm Electronic Sensor, industrial, 34mm, Cable IB0004

Manufacturer: Ifm Electronic
Designation: Sensor, industrial, 34mm, AC/DC cable, sn=20mm, nb
Type: IB0004
Width of the sensor: 34 mm
Height of the sensor: 82 mm
Length of the sensor: 34 mm
Mechanical installation condition for the sensor: non-flush
Switching distance: 20 mm
Suitable for safety functions: no
Type of switching function: Normally closed
Type of switching output: Relay contact
Type of electrical connection: Cable
Number of contact outputs with signaling function: 1
Type of actuation: metallic target
Interface design: none
Interface design for safety-related communication: none
Housing design: Smooth cylinder
Housing coating: other
Cascadeable: no
Max. output current at the safe output: 350 mA
Supply voltage: 20..250 V
Rated control supply voltage Us for DC: 20..250 V
Type of voltage: AC/DC
Switching frequency: 25 Hz
With monitoring function for downstream devices: no
Material of the housing: Plastic
Explosion protection category for gas: none
Explosion protection category for dust: none

Inductive sensors, inductive sensor, Ø 34 mm, plastic sleeve, switching distance: 20 mm, non-flush mountable, 2-wire, AC/DC, operating voltage: 20...250 V AC/DC, Normally closed, n.o., connection cable, 2 m, PVC cable, 2 x 0.5 mm², housing material: PBT.
