Product details

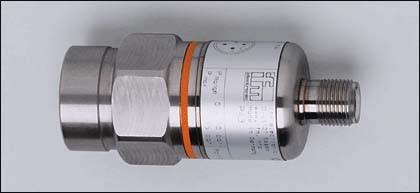

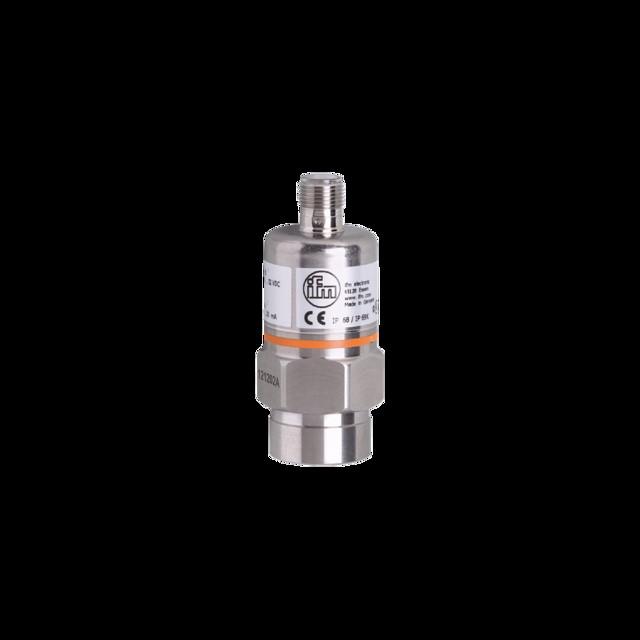

Ifm Electronic Pressure sensor PA3020 Manufacturer :Ifm Electronic Designation :Pressure sensor A-ZVG/US/ /V Type :PA3020 Suitable as monitor :no Suitable as 2 point controller :yes Suitable as limiter :no Max. 600000 hPa Burst pressure :1000 bar Medium temperature :-25..80 °C Rated operating voltage Ue at DC :9,6...32 V Initial value measuring range pressure :0 Pa Final value measuring range pressure :40000000 Pa Rated operating current Ie at AC-1, 400 V :0.02 A Type of electrical connection :other With manual override :no With manual on/off switch :no Electronic version :yes Explosion-proof :no Protection class (IP) :IP68 Ifm Electronic pressure sensor PA3020: more details Pressure sensors, Electronic pressure sensor, Measuring range: 0...400 bar, Process connection: G 1/4I, 2-wire, DC, Operating voltage: 9.6...32 V DC, 4...20 mA plug connection, M12 plug connection, e1-compliant, Material housing: V4A (1.4404) FPM (Viton) PA EPDM/X (Santoprene), Materials in contact with the medium: V2A (1.4305) ceramic FPM (Viton) , EAN: 4021179183512.
