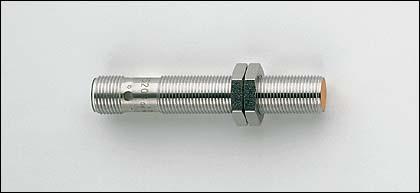

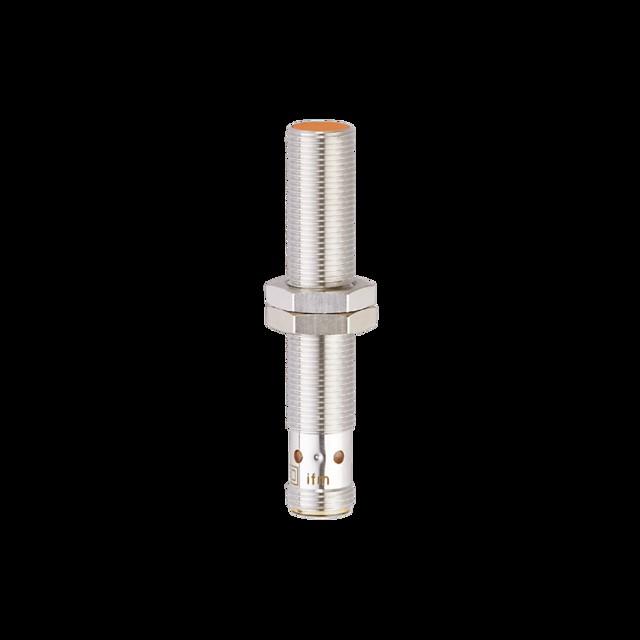

IFM Electronic Inductive proximity switch M12 flush PNP, NPN IFS208
Product details
The electronic inductive proximity switch M12 flush PNP, NPN IFS208 from IFM is a highly advanced sensor designed for precise and reliable applications in automation technology. With a switching distance of 4 mm and the option for flush mounting, this sensor provides a flexible solution for various installation requirements. The switch can be used in both 3-wire and 2-wire operation, making it versatile and adaptable. Its robust construction features a brass housing coated with white bronze, ensuring high resistance to environmental influences. Additionally, the sensor includes an optical adjustment aid with two LEDs, allowing for easy and precise installation. The gold-plated contacts ensure reliable signal transmission and a long device lifespan.
- Operating voltage of 10 to 30 V DC
- Current consumption of only 12 mA
- Optical adjustment aid with two LEDs
- Increased switching distance for improved performance
- Robust brass housing with white bronze coating.
Mounting type | Built-in installation |
Width | 12 mm |
Item number | 32078121 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IFS208 |
Release date | 17.10.2022 |
External links |
Material group | Metal |
Material | Brass white bronze-coated |
Operating mode | Key |
Mounting type | Built-in installation |
LED colour | Green |
Number of poles | 3x |
Nominal voltage | 30 V |
Nominal current | 0.10 A |
Switch + push-button Additional function | Acoustic feedback |
Country of origin | Bulgaria |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | 2-wire DC PNP/NPN, 3-wire, 3-wire DC PNP, Closers, Current consumption: 12 mA, Flush mountable, Gold-plated contacts, Increased switching distance, Inductive sensor, M12 plug connection, M12 x 1, Material housing: brass white bronze coated active surface: PBT, Metal thread, n.o., Operating voltage: 10..30 V DC, Operation as 3-wire or 2-wire possible, Optical adjustment aid (2 LEDs), Plug, Switching distance: 4 mm |
Length | 12 mm |
Width | 12 mm |
Height | 70 mm |
