ifm Electronic IFM ProcessLine distributor

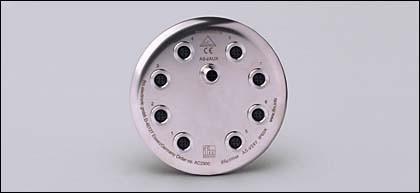

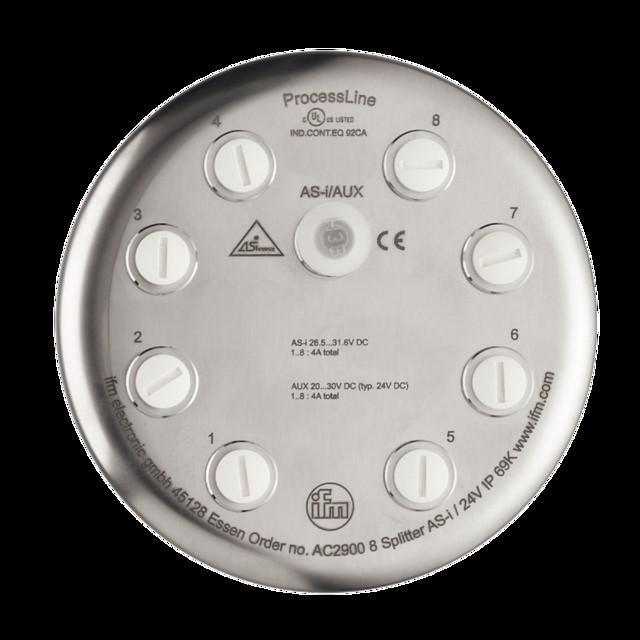

Ifm Electronic AS-i-ProcessLine Distributor AC2900
Manufacturer: Ifm Electronic
Designation: AS-i-ProcessLine Distributor 8-way Distributor
Type: AC2900
Connector type for main line: M12
Number of sensor/actuator slots: 8
Number of channels per slot: 1
Connector type for sensor/actuator cables: M12
Pin count of sensor/actuator slots: 5
Rated voltage: 31.6 V
Operating voltage: 26.5..31.6 V
Max. current load per I/O signal: 4 A
Max. current load per connection socket: 4 A
Max. total current: 4 A
Threaded sockets of sensor/actuator slots: M12
With LED display: no
With potential separation: no
Connection for NPN sensors: no
Cable carrier compatibility of fixed cable version: no
Material of housing: stainless steel
Housing color: silver
Operating temperature: -5..70 °C
Protection class (IP): IP69K
Explosion protection category for gas: none
Explosion protection category for dust: none
Width: 137.3 mm
Height: 137.3 mm
Length: 80 mm

Ifm Electronic AS-i-ProcessLine Distributor AC2900: additional details
Bus system: AS-Interface, passive AS-i-ProcessLine distributor, 8-way distributor, operating voltage: 26.5...31.6 V DC (AS-i), sockets M12x1, via VA distributor E70354, protection class IP 69K, V4A, housing material: V4A polycarbonate, EAN: 4021179004954.
