ifm Electronic IFM level sensor

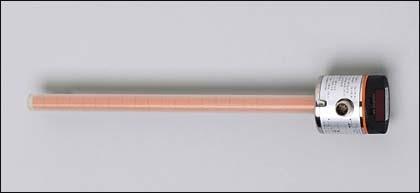

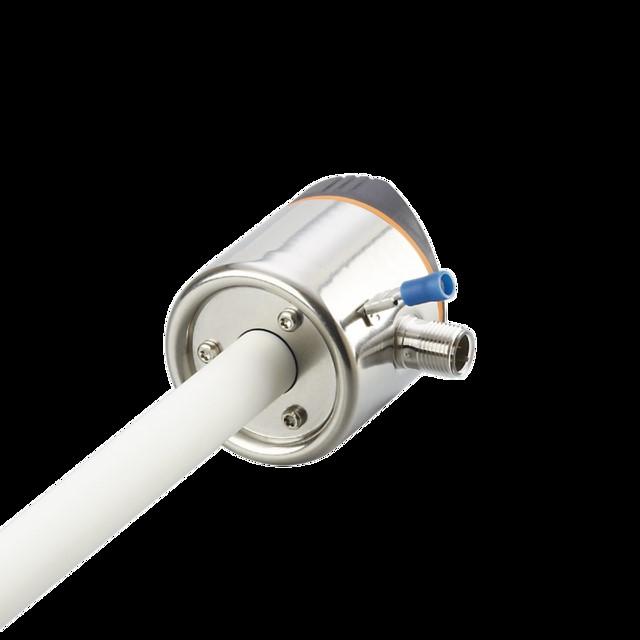

Ifm Electronic Level sensor elektronik LK3124 Manufacturer :Ifm Electronic Designation :Level sensor elektronik 728mm,DC PNP analogue Type :LK3124 Type of electrical connection :Plug connection Rated control supply voltage Us at DC :18..30 V Voltage type for actuation :DC With removable terminals :no Min. adjustable actuation delay time :0 s Max. permissible actuation delay time :0 s Min. adjustable release delay time :0 s Max. permissible release delay time :0 s Max. permissible release delay time :0 s Response sensitivity adjustable :no Number of contacts as changeover contacts :1 Physical measuring principle :Float Width :50 mm Height :785 mm Depth :64 mm Ifm Electronic level sensor elektronik LK3124: more details Level sensors, Electronic level sensor, Measuring range: 585 mm, 4-wire, DC PNP, Operating voltage: 18...30 V DC, current consumption: 60 mA, 1 x analogue 4...20 mA / 0...10 V (OUT2),,1 x normally open / normally closed programmable (OUT-OP), 1 x analogue 4...20 mA / 0...10 V (OUT2),,1 x n.o. / n.c. progr. (OUT-OP), 1 analogue output, plug connection, M12 plug connection (to EN 61076-2-101), Housing material: V2A (1.4301) FKM NBR PBT PC PEI PP TPE / V, Materials in contact with the medium: PP , EAN: 4021179149808.
