Product details

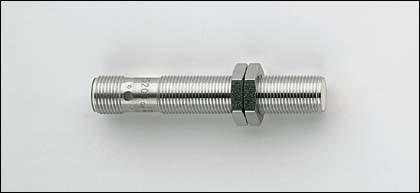

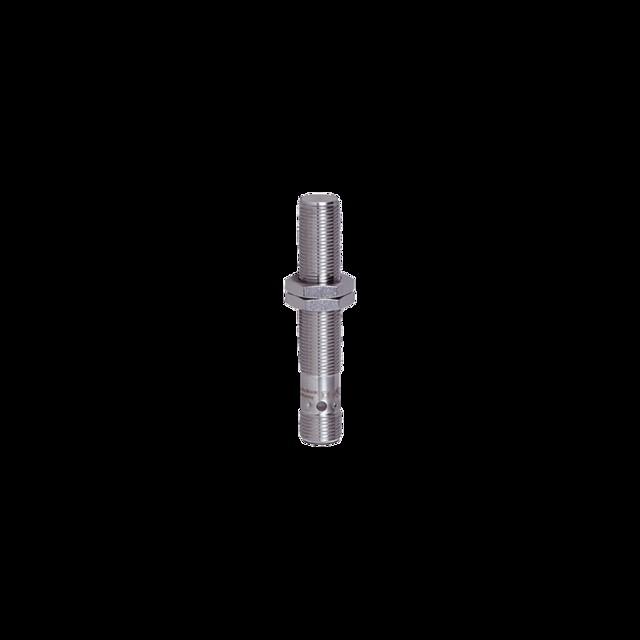

Ifm Electronic Proximity switch IFT205 Manufacturer :Ifm Electronic Designation :Proximity switch inductive Type :IFT205 Sensor length :70 mm Sensor diameter :12 mm Mechanical installation condition for sensor :flush Switching distance :4 mm Suitable for safety functions :no Switching function version :NO contact Switching output version :PNP Electrical connection version :M12 plug connector Number of semiconductor outputs with signalling function :1 Number of safe contact outputs :20 Type of actuation :metallic target Interface design :without Interface design for safety-related communication :without Housing design :cylinder, thread Coating housing :other Cascadable :no Max. output current at safe output :100 mA Max. output current at safe output :100 mA Supply voltage :10..36 V Rated control supply voltage Us at DC :10...36 V Voltage type :DC Switching frequency :500 Hz With monitoring function of downstream devices :no Housing material :Metal Flameproof :no Explosion protection category for gas :none Explosion protection category for dust :without Ifm Electronic proximity switch IFT205: Further details Inductive sensors, Inductive sensor, M12 x 1, metal thread, Switching distance: 4 mm, flush-mountable, 3-wire, 3-wire DC PNP, 2-wire DC PNP/NPN, Operating voltage: 10...36 V DC, current consumption: 10 mA, NO contact, n.o., Plug connection, M12 plug connection, Operation as 3-wire or 2-wire possible , Increased switching distance , Optical adjustment aid (2 LEDs) , Gold-plated contacts, Housing material: V4A (316L) active surface: PEEK (polyether ether ketone) , EAN: 4021179087032.
