Product details

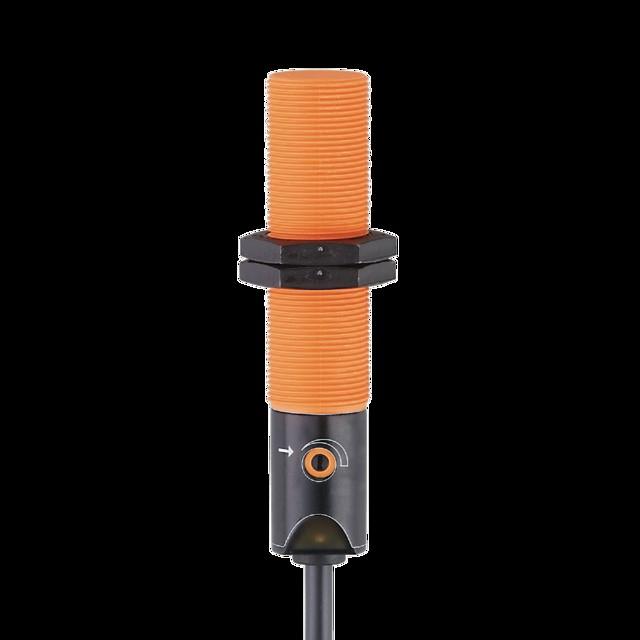

Ifm Electronic Sensor, cap. KG5043
Manufacturer: Ifm Electronic
Designation: Sensor, cap. with connecting cable
Type: KG5043
Length of sensor: 84 mm
Diameter of sensor: 18 mm
Mechanical installation condition for sensor: not flush
Switching distance: 8 mm
Suitable for safety functions: no
Version of switching function: normally open contact
Version of switching output: PNP
Version of electrical connection: Cable
Number of semiconductor outputs with signalling function: 1
Type of actuation: metallic target
Design of interface: without
Design of interface for safety-related communication: without
Housing design: cylinder, thread
Coating of housing: other
Cascadable: no
Max. output current at the safe output: 250 mA
Supply voltage: 10..36 V
Rated control supply voltage Us at DC: 10..36 V
Voltage type: DC
Switching frequency: 50 Hz
With monitoring function of downstream devices: no
Material of housing: Plastic
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Further details:
Capacitive sensors, Capacitive sensor, M18 x 1, Plastic thread, Switching distance: 8 mm, Non-flush mountable, 3-wire, DC PNP, Operating voltage: 10...36 V DC, Current consumption: 10 (24 V) / 15 (36 V) mA, N/O contact, connection cable, 2 m, PVC cable, 3 x 0.34 mm², material housing: PBT, EAN: 4021179146234.
