ifm Electronic Distance sensor

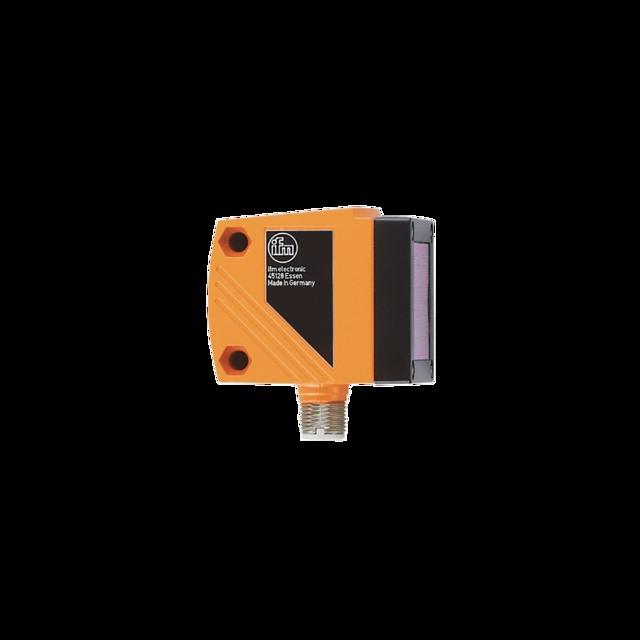

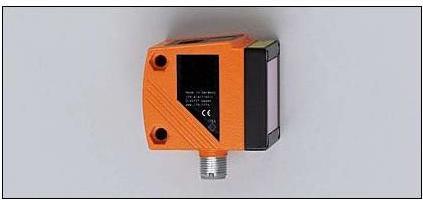

The optical distance sensor O1D100 from ifm Electronic is a highly precise automation instrument designed for a variety of applications in the industry. With a measurement range of 0.2 to 10 meters, this sensor enables reliable distance measurement in different environments. The sensor uses a red light laser diode and offers a switching frequency of up to 5 Hz, making it ideal for dynamic applications. Its robust construction from zinc die-cast and glass front ensures high resistance to environmental influences. The sensor is equipped with an M12 connector, allowing for easy integration into existing systems. Additionally, the O1D100 features a programmable switching function that can be configured as either a normally open or normally closed contact, as well as the option to utilize analog outputs. With an IP65 protection rating, the sensor is protected against dust and splashes, making it well-suited for use in demanding industrial environments.

• Measurement range of 0.2 to 10 meters
• Robust construction from zinc die-cast with glass front
• Programmable switching function (normally open/normally closed)
• Analog output options (4...20 mA / 0...10 V)
• IP65 protection rating for use in demanding environments.
