ifm Electronic Cylinder sensor

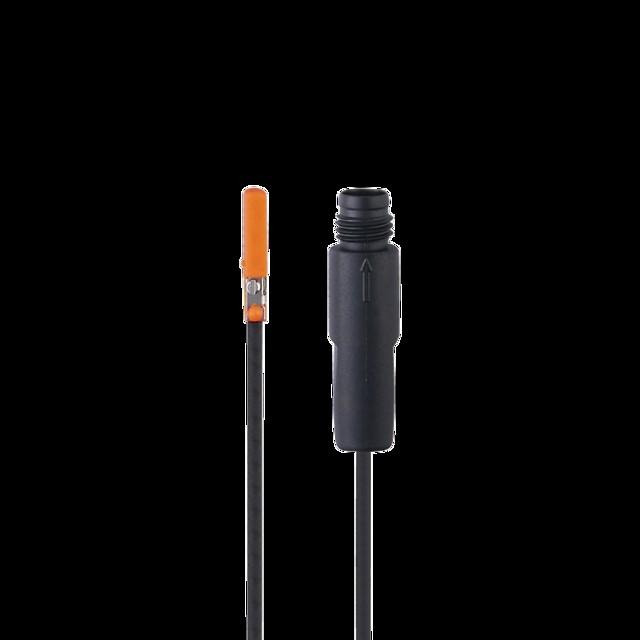

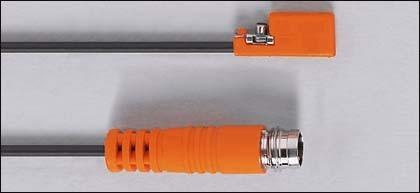

Ifm Electronic Cylinder sensor GMR cell MK5307 Manufacturer :Ifm Electronic Designation :Cylinder sensor GMR cell DC NPN S Type :MK5307 Number of semiconductor outputs with signalling function :1 Type of actuation :Magnet Type of electrical connection :Cable with plug connector Type of switching output :NPN Sensor width :2.8 mm Sensor height :7.7 mm Sensor length :17.5 mm Explosion protection category for gas :none Explosion protection category for dust :none Housing design :Profile Housing material :Plastic Coating housing :uncoated Max. output current at safe output :100 mA Max. output current at safe output :100 mA Ambient temperature :-25..85 °C Mechanical installation condition for sensor :not flush Rated supply voltage at DC :10...30 V Voltage type :DC Cross/short-circuit detection possible :no With monitoring function of downstream devices :no Suitable for safety functions :no Protection class (IP) :IP65 Ifm Electronic cylinder sensor GMR cell MK5307: Further details Magnetic sensors, cylinder sensors, cylinder sensor with GMR cell, plastic housing for C-slot cylinders, non-flush mountable, 3-wire, DC NPN, operating voltage: 10...30 V DC, current consumption: 10 mA, NO contact, n.o., Connection cable with plug connection, 0.3 m, PUR cable, Housing material: Housing: PA (polyamide) Mounting eccentric stainless steel , EAN: 4021179151771.
