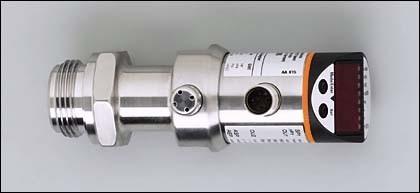

ifm Electronic Combi pressure sensor

Ifm Electronic Combi pressure sensor S/Ö PI2096 Manufacturer :Ifm Electronic Designation :Combi pressure sensor S/Ö -0,124-2,500bar Type :PI2096 Suitable as monitor :no Suitable as 2-point controller :no Suitable as limiter :no Switch-on pressure :-0,12..2.5 bar Switch-off pressure :-0.124..2.496 bar Burst pressure :50 bar Medium temperature :-25..125 °C Rated operating voltage Ue at DC :18...32 V Rated operating current Ie at AC-1, 400 V :0.25 A Number of auxiliary contacts as NO contacts :1 Number of auxiliary contacts as NC contacts :1 Type of electrical connection :other With manual override :no With manual on/off switch :no Electronic version :yes Explosion-proof :no Protection class (IP) :IP67 Ifm Electronic Combi pressure sensor S/Ö PI2096: more details Pressure sensors, Combi pressure sensor, Measuring range: -0.124...2.500 bar, process connection: for Aseptoflex adapter, 4-wire, DC PNP/NPN, operating voltage: 18...32 V DC, current consumption: 50 mA, 1 x normally open / normally closed programmable + 1 x analogue (I / U, scalable 1:4), 1 x n.o. / n.c. progr. + 1 x analogue (I / U, scalable 1:4) Plug connection, M12 plug connection, free of dead space , Rotatable housing 350° , 0-point and span adjustable , Function programmable, Material housing: V4A / 316L / 1.4404 PC , PBT (Pocan) PEI FPM (Viton) PTFE, Materials in contact with the medium: Ceramic (99.9 % Al2O3) PTFE V4A / 316L / 1.4435 Surface finish: Ra < 0.4 / Rz 4 , EAN: 4021179186117.
