ifm Electronic Cable box

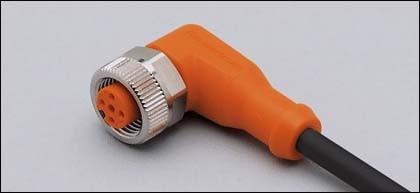

Ifm Electronic cable socket angled EVC073 Manufacturer :Ifm Electronic Designation :Cable socket angled M12 5p AC/DC, hfr Type :EVC073 Number of poles :5 Electrical connection version, field side :M12 Type of plug contact, field side :female Cable feed arrangement, field side :Angled Electrical connection version, housing side :free cable end Cable feed arrangement, housing side :other Cable length :2 m Cable sheath material :polyurethane (PUR) Cable sheath colour :black With LED indicator :no Shielded :no Cable type :multicore Perm. Permissible external cable temperature after installation without vibration :-25..90 °C Permissible external cable temperature during installation/handling :-25...90 °C Rated current In :4 A Rated voltage :36 V Ifm Electronic angled cable socket EVC073: Further details Connection technology, angled cable socket, M12, 5-pin, 5-wire, AC/DC, operating voltage: 60 V AC, 60 V DC, For sensors with M12 plug connection, 2 m, PUR cable, 5 x 0.34 mm², silicone-free , halogen-free , Contacts gold-plated, Housing material: Housing: TPU orange Seal: Viton, Union nut material: Nickel-plated brass , EAN: 4021179021852.
