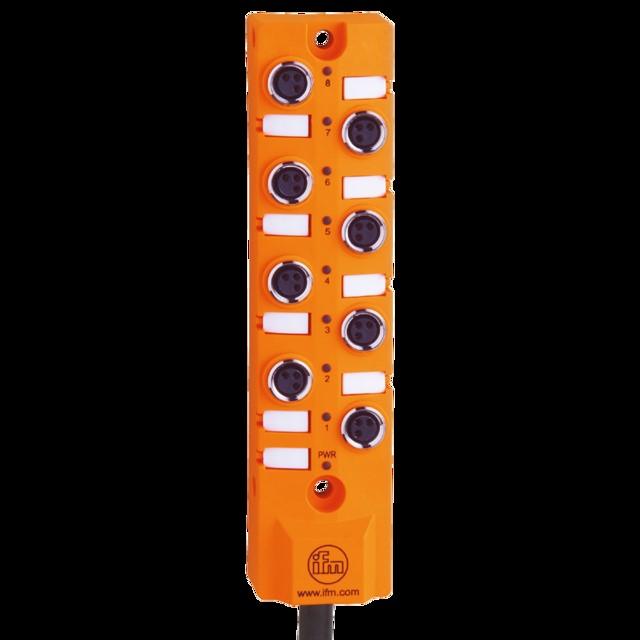

IFM EBC054

Ifm Electronic Central distributor EBC054 Manufacturer :Ifm Electronic Designation :Central distributor 8-way M8 Type :EBC054 Length of pre-assembled cable :5 m Cable length configurable :no Number of sensor/actuator slots :8 Number of channels per slot :1 Design of outlets for sensor/actuator cables :M8 Number of poles of sensor/actuator slots :3 Rated voltage :30 V Operating voltage :10..30 V Max. Current-carrying capacity per I/O signal :2 A Max. Current-carrying capacity per connection socket :2 A Max. Total current :6 A Threaded sockets of the sensor/actuator sockets :M8 With LED display :yes With potential separation :no Connection for NPN sensors :no Drag chain suitability of the fixed cable version :no Material of the housing :Plastic Housing colour :other Operating temperature :-25..80 °C Protection class (IP) :IP68 Explosion protection category for gas :none Explosion protection category for dust :none Width :30 mm Height :20 mm Depth :129.5 mm Ifm Electronic central distributor EBC054: further details Connection technology, central distributor, 8-way, M8, 3-pole, 10-wire, DC PNP, operating voltage: 10...30 V DC, connection cable, 5 m, PUR cable, 8 x 0.34 mm² 2 x 0.75 mm², contacts gold-plated, material housing: PBT-GF 20 brass nickel-plated , EAN: 4021179268387.
