IFM EBC023

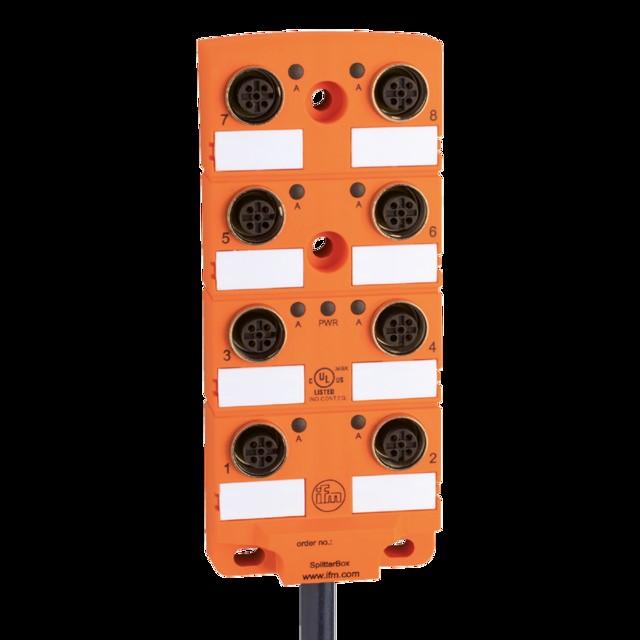

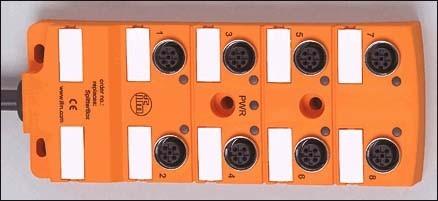

Ifm Electronic Central distributor EBC023 Manufacturer :Ifm Electronic Designation :Central distributor 8-way M12 DC IP67 Type :EBC023 Length of pre-assembled cable :5 m Cable length configurable :no Number of sensor/actuator slots :8 Number of channels per slot :1 Design of outlets for sensor/actuator cables :M12 Number of poles of sensor/actuator slots :5 Rated voltage :30 V Operating voltage :10..30 V Max. Current-carrying capacity per connection socket :4 A Max. 12 A Threaded sockets of the sensor/actuator sockets :M12 With LED display :yes Drag chain suitability of the fixed cable version :yes Enclosure material :plastic Enclosure colour :other Protection class (IP) :IP67 Explosion protection category for gas :none Explosion protection category for dust :none Width :60 mm Height :22 mm Depth :152 mm Ifm Electronic central distributor EBC023: further details Connection technology, central distributor, 8-way, M12, 5-pin, 11-wire, DC, operating voltage: 10...30 V DC, connection cable, 5 m, PUR cable, 8 x 0.34 mm² 3 x 0.75 mm², halogen-free , silicone-free , contacts gold-plated, material housing: PA , EAN: 4021179249133.
