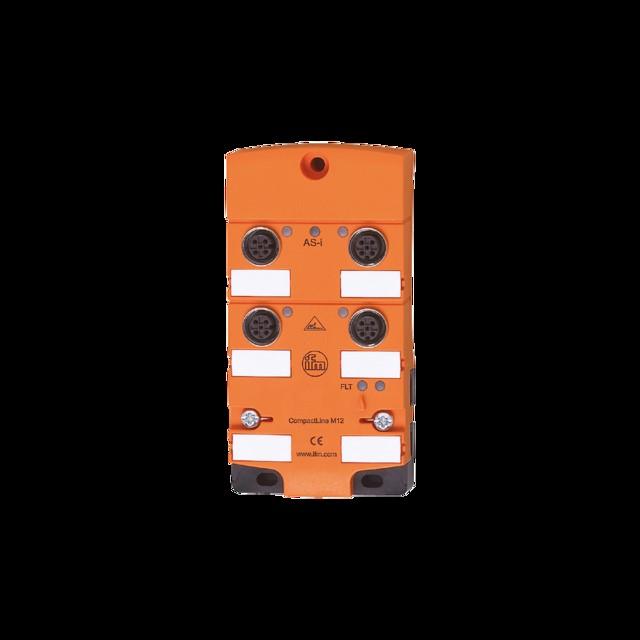

IFM AC2413

Ifm Electronic Compact module AC2413 Manufacturer :Ifm Electronic Designation :Compact module 4-way distributor Type :AC2413 Type of connector for master cable :other Number of sensor/actuator slots :4 Number of channels per slot :31 Type of outlets for sensor/actuator cables :M12 Number of poles of sensor/actuator slots :5 Operating voltage :26.5..31.6 V Max. Max. current carrying capacity per connection socket :4 A Threaded sockets of the sensor/actuator slots :M12 With LED display :yes With potential isolation :no Connection for NPN sensors :no Drag chain suitability of the fixed cable version :no Housing material :Plastic Housing colour :other Operating temperature :-40...85 °C Protection class (IP) :IP67 Explosion protection category for gas :none Explosion protection category for dust :none Width :60 mm Height :118.2 mm Length :27 mm Ifm Electronic compact module AC2413: more details Bus system AS-Interface, passive compact module, AS-i flat cable for direct contact, 4-way distributor, operating voltage: 26.5...31.6 V DC Sockets M12x1, Material housing: PA 6.6 Socket: nickel-plated brass Threaded sockets in base: nickel-plated brass O-ring (socket): Viton Piercing contacts CuSn6 Surface nickel-plated and tin-plated , EAN: 4021179003773.
