Icy Box IB-M2S253

EasySwap

Easily convert from M.2 to 2.5" format. If no M.2 slot is available, an M.2 SSD can still be used: simply utilize an existing SATA 22-pin or a 7-pin & 15-pin SATA III connection via our adapter IB-M2S253. Data transfer rates of up to 6 Gbit/s are then available.

Flexibility

The four slots for all common M.2 lengths provide maximum flexibility, allowing for the installation of shorter M.2 SSDs as well. The M.2 sizes 22x30, 42, 60, and 80 mm are compatible with the IB-M2S253 and are very easy to install.

High-Quality Processing

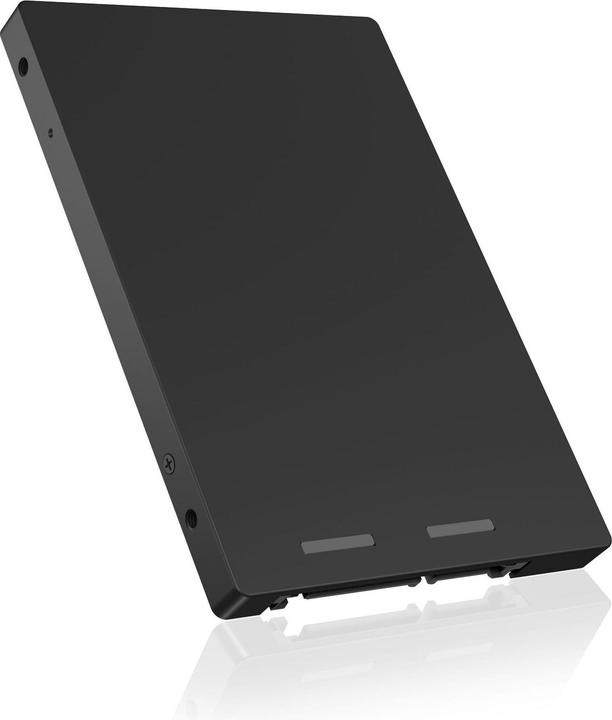

The adapter comes in a simple black design and in the standard dimensions of a 2.5" SSD. Made from aluminum, it is particularly robust and durable. With a 2.5" size, a height of 7 mm, and the usual mounting holes for installation, the adapter ensures 100% 2.5" comfort.

Main Features

Storage medium: Size of the M.2 storage drive
Supported storage drive interfaces: SATA, Serial ATA II, Serial ATA III
Number of supported storage drives: 1
Supported drive height: 22 mm
Supported storage drive lengths: 30, 42, 60, 80 mm
Connections and interfaces: USB connection No
Design: Product type SSD enclosure
Product color: Black
Material: Aluminum

Performance

Data transfer rate: 6 Gbit/s

System Requirements

Supports Windows operating systems: Yes

Weight and Dimensions

Width: 100 mm
Depth: 70 mm
Height: 7 mm
Weight: 46 g
Packaging width: 27 mm
Packaging depth: 105 mm
Packaging height: 200 mm
Package weight: 111 g

Scope of Delivery

Screws included: Yes
Operating instructions: Yes

Logistics Data

Width of shipping box: 500 mm
Length of shipping box: 220 mm
Height of shipping box: 300 mm
Weight of shipping box: 5.1 kg
Number of products per shipping box: 40 pieces.
