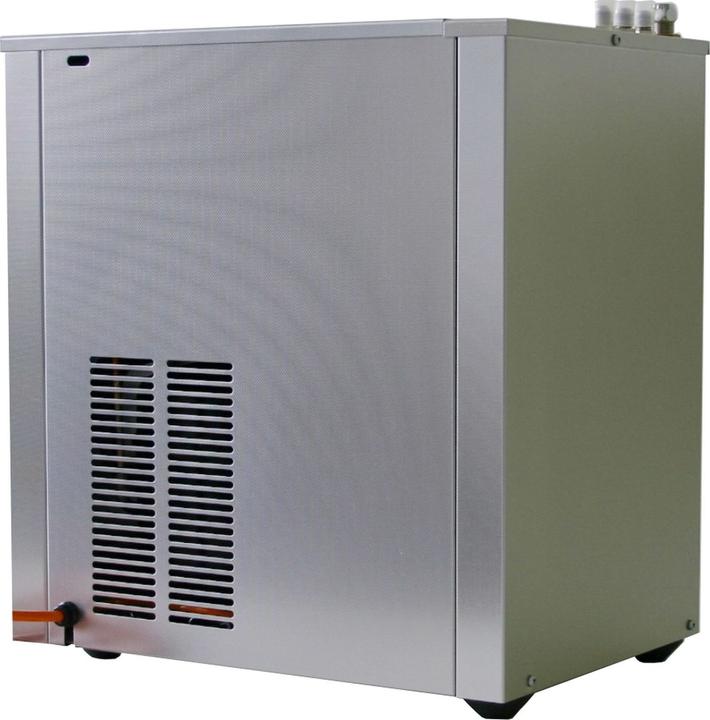

Ich-zapfe Mt 30 Ut Untertheken

Water bubbler, water dispenser and dispensing system MT 30-UT undercounter Classic table water system with dry cooling for restaurants and the HoReCa sector Very high CO2 volume of up to 7.5 g/litre Carbonator tank is located in an aluminium block for better cooling Venturi system for carbon dioxide enrichmenture enrichment system Output capacity of 100 litres of sparkling water per hour, 0.8-litre boiler size Cooling capacity of 38 litres per hour with ΔT = 10°C dry cooling systemCooling system Dispensing temperature from 3° to 9°C Dimensions WxDxH 413x285x456 mm Operating pressure for H2O at 2.5 bar flow pressure constant Operating pressure for CO2 at min. 3.5 bar and max. 5 bar Temperature for H2O at min. 5°C and max. 25°C Ambient temperature at min. 5°C and max. 32°C Storage temperature between min. 2°C and max. 40°C Maximum power consumption of 420 W Made of stainless steel and weighs 28 kg H2O connection at the rear with a G 3/8" male thread CO2 connection at the rear with a G 1/2" BSF male thread Outlets at the rear with a G 1/2" BSF male thread Rotating pump Innovative dry cooling technology for safer and more reliable cooling of the water.hl technology for a safer and more hygienic dispensing system Water types - sparkling water, chilled still water, still water The MT 30-UT under-counter dispensing system is a classic table water system with innovative dry cooling technology for restaurants and the HoReCa sector. Thanks to the proven Venturi system and a carbonator tank in an aluminium block, you can achieve a very high CO2 volume of up to 7.5 g/litre. The output capacity is 100 litres of sparkling water per hour, with a boiler size of 0.8 litres and a cooling capacity of 38 litres per hour at ΔT = 10°C dry cooling. The dispensing temperature varies from 3° to 9°C for refreshing drinks. The MT 30-UT under-counter dispenser has a maximum weight of 28 kg and is made of stainless steel. The connections for H2O and CO2 are located at the rear and have a G 3/8" external thread or a G 1/2" BSF external thread. The outlets are also on the back and have a G 1/2" BSF external thread.
