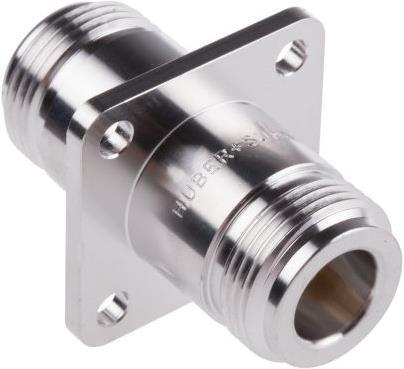

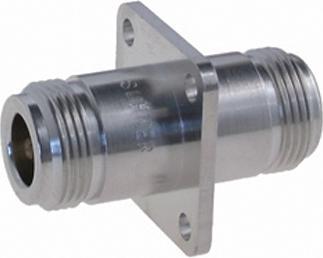

Huber & Suhner Panel Adaptor N to N jack/jack

Adapter Type A = Type N
Adapter Type B = TypeN
Gender A = Female
Gender B = Female
Impedance = 50Ω
Housing orientation = Straight
Operating frequency = 0 → 11GHz
Contact plating = Gold over nickel
Length = 38mm
Case coating = White bronze
Contact Material = Beryllium Copper

Interface conforming to IEC 61169-16_MIL-STD-348A/304_CECC 22210 Precision interface conforming to IEC 60169-16_MIL-STD-348A/402_CECC 22210 Huber+Suhner N Series 50 Ohm RF Coaxial Adapters. A series of N series 50 ohm RF coaxial adapters with a variety of configurations including N male to N male, N jack to N jack, and N male to N jack with straight, right angle, and T orientation as well as add-on housing mounting options. Part No. ; 716-4811 716-4811 is an N-series T-adapter with a jack/jack/plug configuration. These N-series 50 ohm RF coaxial adapters include N-precision-to-N-precision adapters for use in test and measurement applications (Part No. ; 716-4849 716-4849 , ; 716-4855 716-4855 , ; 716-4877 716-4877 and ; 716-4892 716-4892. These N-series precision adapters feature an IEC 60169-16_MIL-STD-348A/402_CECC 22210 interface standard.
