Name: Xeon Silver 4208, 2.1GHz
Brand: HPE
SKU: 12072268
Rating: 5 (1 reviews)

productDetailPageQuery

This processor is designed for cloud computing, real-time analytics, mission-critical processing, and big data analytics. It improves the efficiency and reliability of data centers and handles any task.

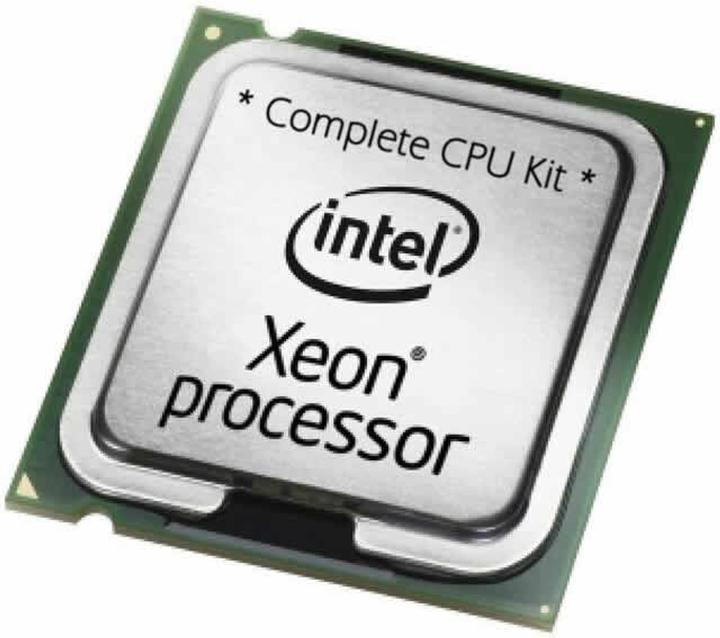

Actual product image HPE Xeon Silver 4208, 2.1GHz (Socket P, 2.10 GHz, 8 -Core)

Key specifications

Number of processor cores

A multi-core processor (or chip-level multiprocessor, CMP) combines two or more independent cores (normally a CPU) into a single package composed of a single integrated circuit (IC), called a die, or more dies packaged together. A dual-core processor contains two cores, and a quad-core processor contains four cores.

Number of threads

Max. TDP

The thermal design power (TDP), sometimes called thermal design point, refers to the maximum amount of power the cooling system in a computer is required to dissipate. For example, a laptop's CPU cooling system may be designed for a 20 watt TDP, which means that it can dissipate up to 20 watts of heat without exceeding the maximum junction temperature for the computer chip. It can do this using an active cooling method such as a fan or any of the three passive cooling methods, convection, thermal radiation or conduction. Typically, a combination of methods is used. The TDP is typically not the most power the chip could ever draw, such as by a power virus, but rather the maximum power that it would draw when running "real applications". This ensures the computer will be able to handle essentially all applications without exceeding its thermal envelope, or requiring a cooling system for the maximum theoretical power (which would cost more but in favor of extra headroom for processing power).

L3 Cache

Another issue is the fundamental tradeoff between cache latency and hit rate. Larger caches have better hit rates but longer latency. To address this tradeoff, many computers use multiple levels of cache, with small fast caches backed up by larger slower caches.

Multi-level caches generally operate by checking the smallest Level 1 (L1) cache first; if it hits, the processor proceeds at high speed. If the smaller cache misses, the next larger cache (L2) is checked, and so on, before external memory is checked.

As the latency difference between main memory and the fastest cache has become larger, some processors have begun to utilize as many as three levels of on-chip cache.

Item number	12072268
Manufacturer	HPE
Category	Processors
Manufacturer No.	P10938-B21
Release date	25.7.2019

Socket	Socket P
Intel Core	Cascade Lake
Clock frequency	2.10 GHz
Max. turbo clock rate	3.20 GHz
Number of processor cores	8 -Core
Number of threads	16
Lithography	14 nm
Max. TDP	85 W
L3 Cache	11 MB
PCI express version (max.)	3
Processor design	64-bit
Transfer rate	6.90 GT/s

Memory channels	Hexa-Channel
Memory type	DDR4-RAM
Max. memory (RAM)	1000 GB
