Product details

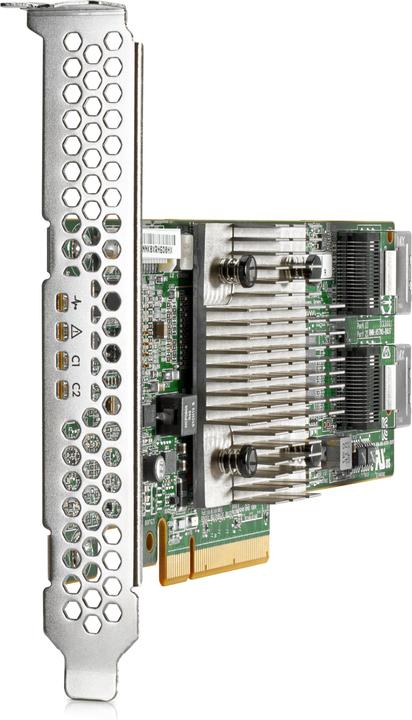

Do you need a cost-effective controller that provides quick access to data on internal server drives? The HP H240 Smart Host Bus Adapter comes in a compact x8 PCIe3 stand-up form factor, delivering reliable, high-performance SAS connections to data on internal server drives. The adapter offers eight internal physical connections and 12 Gbit/s SAS performance.
The H240 Smart Host Bus Adapter can operate flexibly in HBA mode or in simple RAID mode. When operating in simple RAID mode, the adapter provides RAID 0, RAID 1, and RAID 5 with optional HP Secure Encryption features.
Unlike HP Smart Array controllers, the H240 does not offer acceleration and does not support cache modules.
Internal connection options | SAS (2x) |
Expansion slot | PCI Express x8 (1x) |
RAID configuration | 0, 1, 10, 5 |
Controller type | RAID controller |
Item number | 2760051 |
Manufacturer | HPE |
Category | Storage controller |
Manufacturer no. | 726907-B21 |
Release date | 22.9.2014 |
External links |
Controller type | RAID controller |
Expansion card form factor | Low profile |
Number of ports | 8 Ports |
RAID configuration | 0, 1, 10, 5 |
Expansion slot | PCI Express x8 (1x) |
Internal connection options | SAS (2x) |
Scope of delivery | Low profile slot bracket |
CO₂-Emission | |
Climate contribution |
Length | 168 mm |
Width | 68.60 mm |
Weight | 119 g |
Length | 24.90 cm |
Width | 21.90 cm |
Height | 6.20 cm |
Weight | 346 g |
Specifications may include unverified machine translations.
