Honeywell Piezo pressure sensor,0-15psi,gauge

Pressure display type: Pressure display
Pressure display min: 0 psi
Pressure display max: 15 psi
Accuracy: 0.2
Output type: Not amplified
Medium: Nitrogen gas, oxygen, water
Connection: Solder connection
Response time: 1 ms
Supply voltage: 10 Vdc
Operating temperature max: +85°C

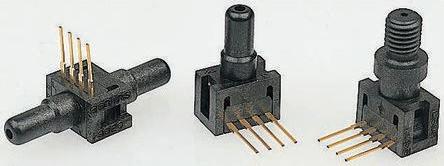

This is an uncompensated, differential and relative pressure piezo resistance sensor. The series features an uncompensated miniature pressure transducer with a connection system that includes a conductive seal to avoid internal wire and solder tag connections. Absolute and differential pressure versions are available in six pressure ranges. A significant difference from compensated versions occurs at the zero point and at full deflection, with an offset of ±30 mV at 10 V DC supply voltage. Full deflection is achieved with maximum and minimum range. Temperature compensation of the measured values can be improved by 7 to 10 times using a current source with 1.6 mA (recommended). The relative version of the 7 bar sensor includes a screw connection of 1/4"-28UNF to support pipe connections. Other sensors are supplied with a lockable mounting ring made of steel. A usable information sheet is supplied for mounting these sensors, along with a mounting bracket.
