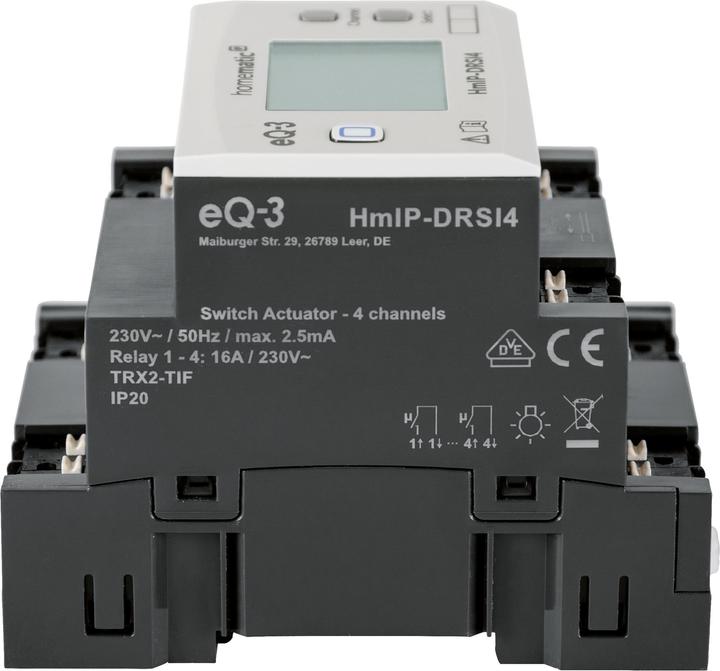

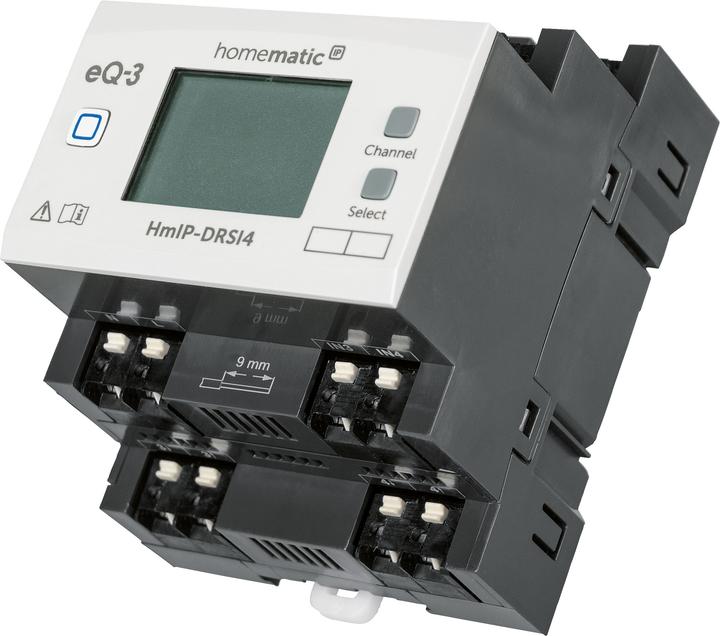

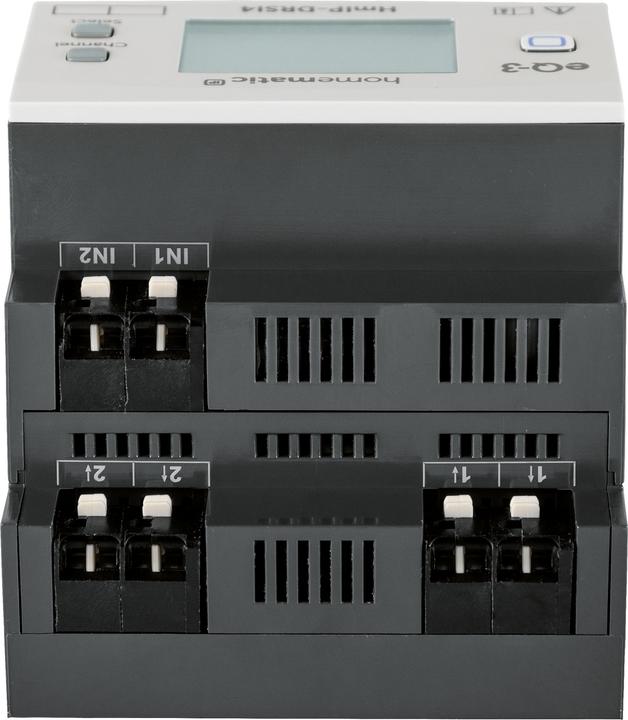

Homematic IP Wireless switching actuator for top-hat rail mounting 4-fold

Controls up to four channels from the distribution cabinet. The robust housing design allows for professional yet simple installation on standard DIN rails. Versatile control options are available directly via standard 230 V switches, wirelessly through Homematic IP switches or remote controls, and even anytime via the smartphone app.

Ohmic loads of 16 A per channel, incandescent lamps up to 1500 W per channel, lamps with internal ballast, LED, compact fluorescent lamps up to 200 W per channel, HV halogen lamps up to 1500 W per channel, NV halogen lamps with electronic or iron core transformers up to 1500 W per channel, electric radiators and electric heating systems up to 8 A, with 200,000 switching cycles per channel.

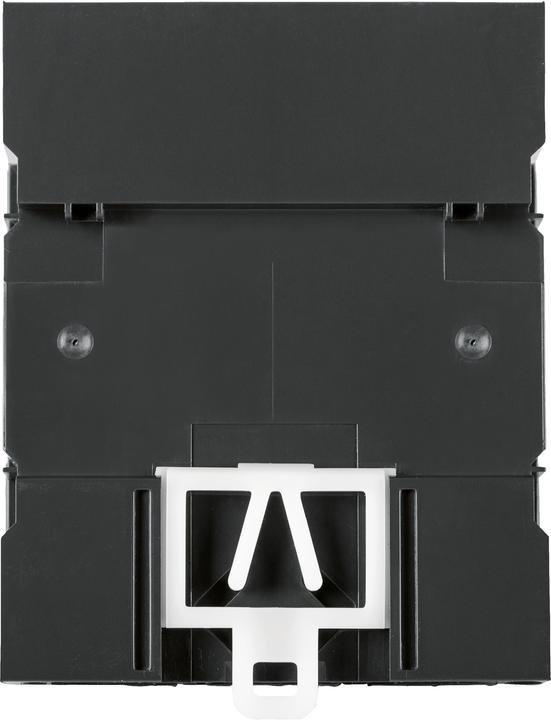

Mounting on standard DIN rails is particularly easy thanks to spring-loaded terminals and connectors. Each channel can be assigned to a different phase, allowing for independent control of each channel. Even without programming, the function and wiring can be checked directly on the device during installation, thanks to the illuminated display and device buttons.

Connected lights can be flexibly controlled via wireless switches or remote controls, as well as anytime through the Homematic IP app (e.g., via time profiles). Alternatively, manual operation via conventional wired switches is also possible. Adjustable time profiles in the Homematic IP app allow the lighting to be tailored to the daily routines of the residents. Additionally, the switching actuator can be conveniently controlled via voice commands (through Amazon Alexa or Google Assistant).
