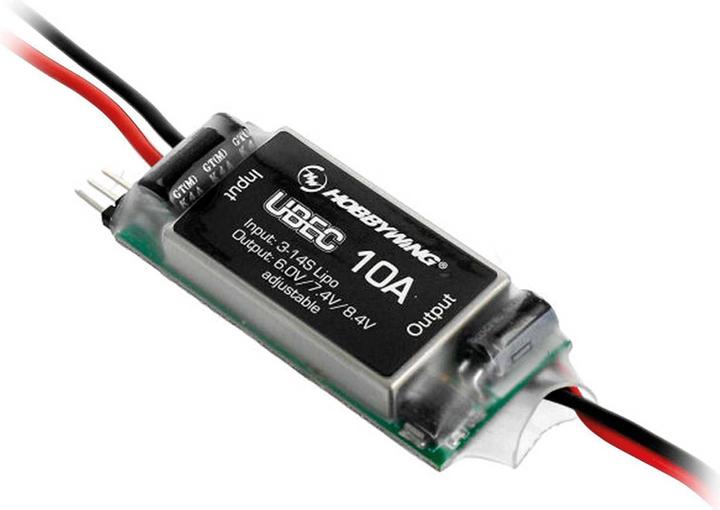

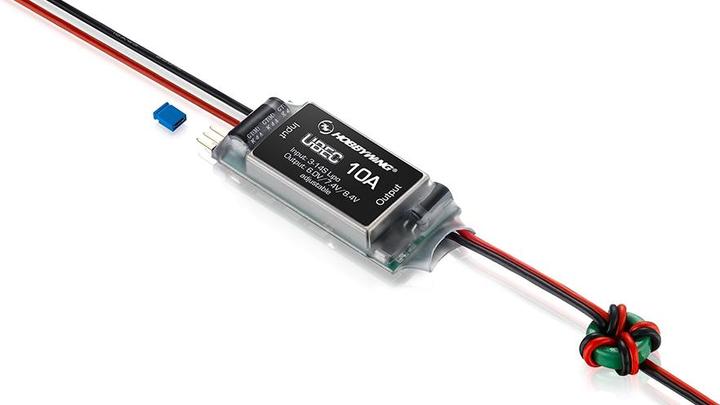

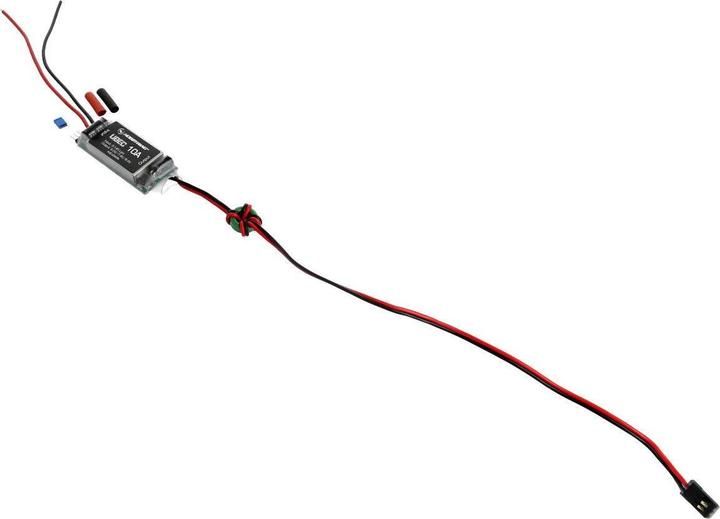

Hobbywing Voltage regulator UBEC HV Air 10A 3-14S

This UBEC is an external DC voltage regulator that operates in switch mode. It draws its voltage from 3-14S LiPo batteries and continuously delivers a stable output current of 10A, with a short-term capability of up to 25A. In this way, the UBEC provides power for other devices in an RC model and is also excellent for all fixed-wing aircraft models.

Features:

• Highly efficient DC-DC regulator chip with a transfer efficiency of over 90%.
• A fully metal housing design aids in heat dissipation and reduces electromagnetic interference.
• Adjustable UBEC output voltage (6.0V/7.4V/8.4V) suitable for servos with different voltage requirements.
• Multiple protection features: overcurrent protection, output short circuit protection, overheating protection, safe and reliable.
• LED indicator to display the status of the UBEC.

Technical specifications:

• Input voltage: 3-14S LiPo
• Output voltage: 6.0V / 7.4V / 8.4V (adjustable)
• Current continuous/peak: 10A / 25A
• Dimensions: 55x25x12mm
• Weight: 35g.
