HMS CAN converter bus D-SUB9 fiber optic F-ST Ixxat 1.01.0068.46010 Operating voltage -

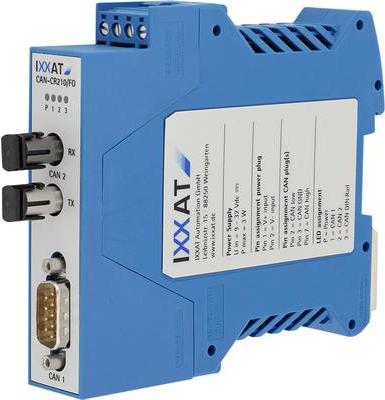

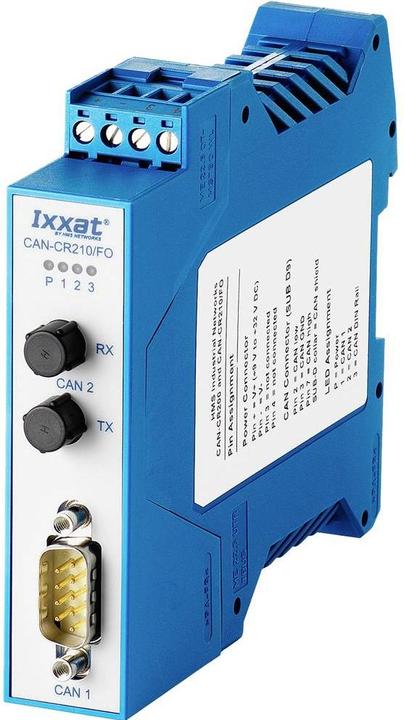

Description CAN-CR210/FO - Fiber optic version with ST connector for cascading converter from ISO 11898-2 to optical fiber. The CAN-CR210/FO is used to convert the CAN signal from copper (ISO 11898-2) to optical fiber. This achieves complete galvanic isolation and protection against electromagnetic interference. For the construction of star or tree topologies, the CAN-CR210/FO can be cascaded (also in conjunction with the CAN-CR200) and can be assembled into a star coupler. The connection is made via a DIN rail bus. A special feature of the repeater is that it isolates a faulty segment from the rest of the network, allowing the remaining network to continue operating. Once the fault is resolved, the segment is automatically reactivated.

Technical Data:
Operating Voltage: 9 - 32 V/DC
Operating Temperature (Range): -20 to 70 °C
Operating Temperature (Max.): 70 °C
Operating Temperature (Min.): -20 °C
Product Dimensions, Width: 22.5 mm
Product Dimensions, Height: 100 mm
Type (Manufacturer Type): 1.01.0068.46010

Additional Technical Data:
Indicators: Transmission process/faulty segment (three duo LEDs), Power (one LED)
CAN Bus Interface: ISO 11898-2 with CAN choke, Sub-D9 connector, and a DIN rail bus.
Integrated CAN termination resistors (switchable)
Fiber Optic Connection: 2 x F-SMA or ST connector for duplex cables (fiber optic 50/125 µm duplex)
Baud Rate: up to 888 kbps
Delay: Approx. 300 ns (equivalent to about 60 meters bus length) from the copper connection of an FO repeater over fiber optic to the copper connection of a second FO repeater (without delay time of the fiber optic line approx. 5 ns/m)
Galvanic Isolation: 1 kV, 1 sec.
CAN 1 Certification: CE, FCC
Housing: Plastic DIN rail housing.
