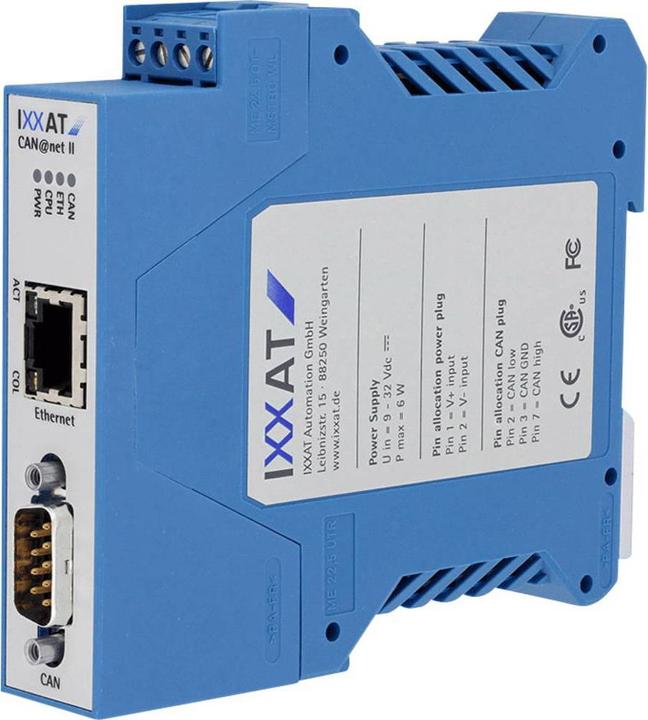

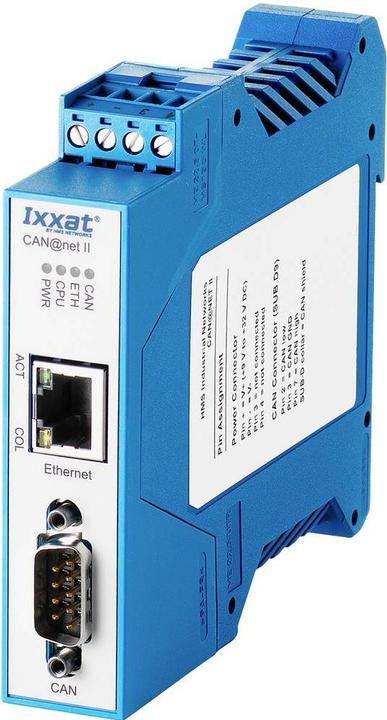

HMS 1.01.0086.10200 Convertitore CAN Bus Ethernet 12 V/DC 24 V/DC - CE - CSA

Description CAN@net II/VCI

The CAN@net II enables easy and flexible access of a PC to CAN systems via Ethernet. With support for the TCP/IP protocol, the CAN@net II can be directly connected to a PC, integrated into a LAN, or communicate globally over the Internet with the gateway. With the included VCI CAN driver, the CAN@net II can be operated like all IXXAT CAN PC interface cards. This means that all VCI-based CAN programs and tools are compatible with the CAN@net II. The VCI CAN driver also allows communication with up to 128 CAN@net II interfaces simultaneously from a PC.

In addition to the CAN@net II/VCI, IXXAT also offers the CAN@net II/Generic variant, which can be accessed via a standard TCP/IP socket interface or used as a CAN-Ethernet-CAN bridge.

Technical specifications:

• Operating voltage: 9 - 32 V/DC
• Operating temperature (range): -20 to 70 °C
• Operating temperature (max.): 70 °C
• Operating temperature (min.): -20 °C
• Product dimensions, width: 22.5 mm
• Product dimensions, height: 100 mm
• Type (manufacturer type): 1.01.0086.10200

Additional technical data:

• Ethernet interface: 10/100 Mbit/s Ethernet (10Base-T/100Base-T), autodetect, RJ45 connector, auto crossover
• IP address assignment: DHCP, via PC tool
• Microcontroller: Freescale MCF5235
• Memory expansion: 8 MByte DRAM, 4 MByte Flash
• CAN controller: SJA1000 CAN 2.0 A/B
• CAN bus interface: ISO 11898-2, Sub D9 connector according to CiA 303-1
• Galvanic isolation: 1 kV, 1 sec.
• Certification: CE, FCC, CSA
• Housing: Plastic housing for DIN rail mounting.

Scope of delivery: CAN@net II/VCI, user manual, VCI CAN driver for Windows 2000, XP, Vista, Windows 7, simple CAN bus monitor "miniMon".
