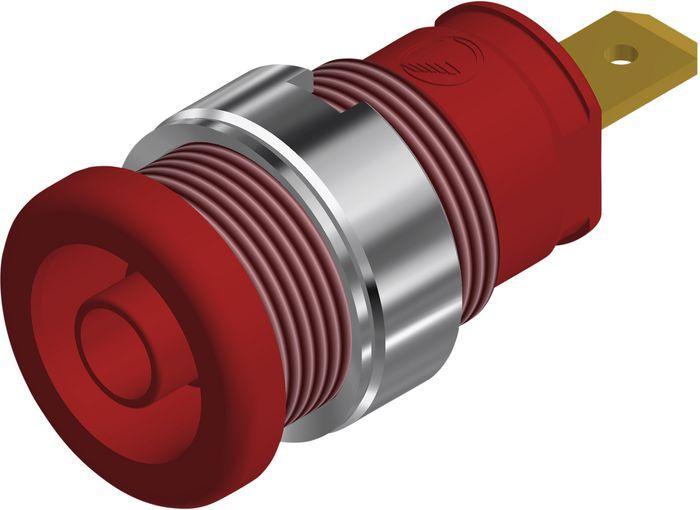

Hirschmann Test & Measurement Safety laboratory socket, red, gold-plated, 1kV, 25A

The safety laboratory socket from Hirschmann Test & Measurement is a high-quality banana socket designed for use in demanding electrical applications. With a rated voltage of 1 kV AC and 1 kV DC, as well as a maximum rated current of 25 A, it provides a reliable connection for various electronic devices. The socket is made of robust brass and features a gold-plated contact coating that ensures excellent conductivity and corrosion resistance. The polyamide (PA) insulating material adds extra safety and durability. The socket is suitable for panel mounting and can be easily connected with flat connectors sized 4.8 x 0.8 mm. Its compact design and straight orientation make it ideal for use in tight spaces and for various applications in laboratories and testing environments.

• Rated voltage of 1 kV AC and 1 kV DC
• Maximum rated current of 25 A
• Gold-plated contact coating for improved conductivity
• Suitable for panel mounting with easy installation
• Made from robust brass and polyamide (PA).
